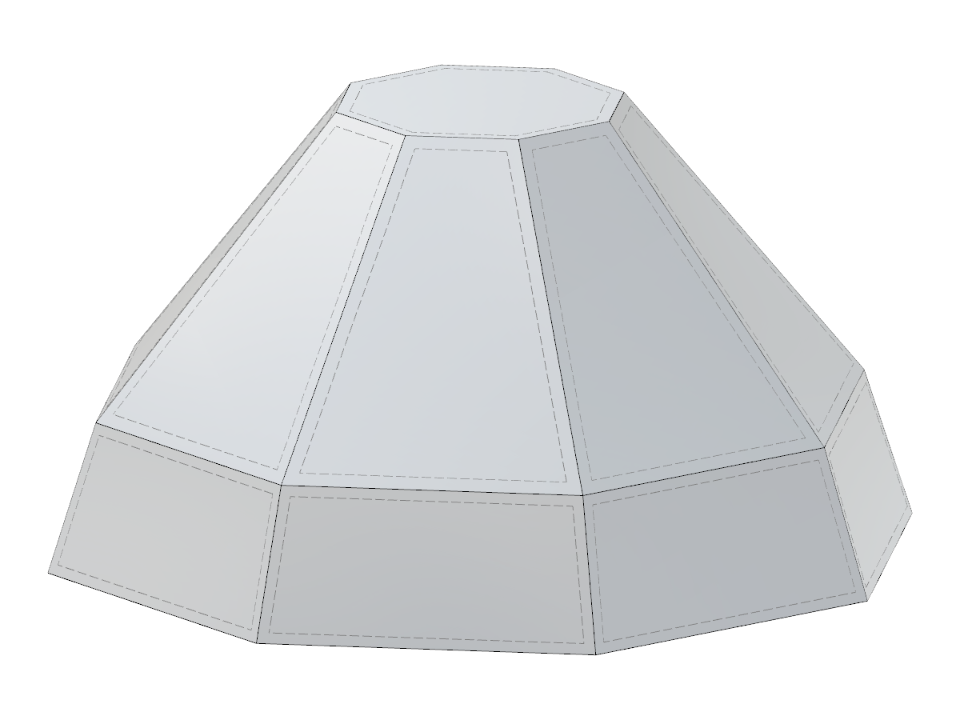

This model features a truncated pyramid with a tapered bottom part, designed using a parametric JavaScript block. Input can be adjusted via the length of the edge, the radius of the circumscribed circle, or the radius of the inscribed circle. This allows for flexible adaptability and precision in structural simulations. Ideal for architectural and engineering analysis.
Truncated Pyramid Model with Tapered Base
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 40 |
| Number of Members | 0 |
| Number of Surfaces | 18 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 826.868 tons |
| Dimensions (Metric) | 11.759 x 6.000 x 11.759 m |
| Dimensions (Imperial) | 38.58 x 19.69 x 38.58 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
