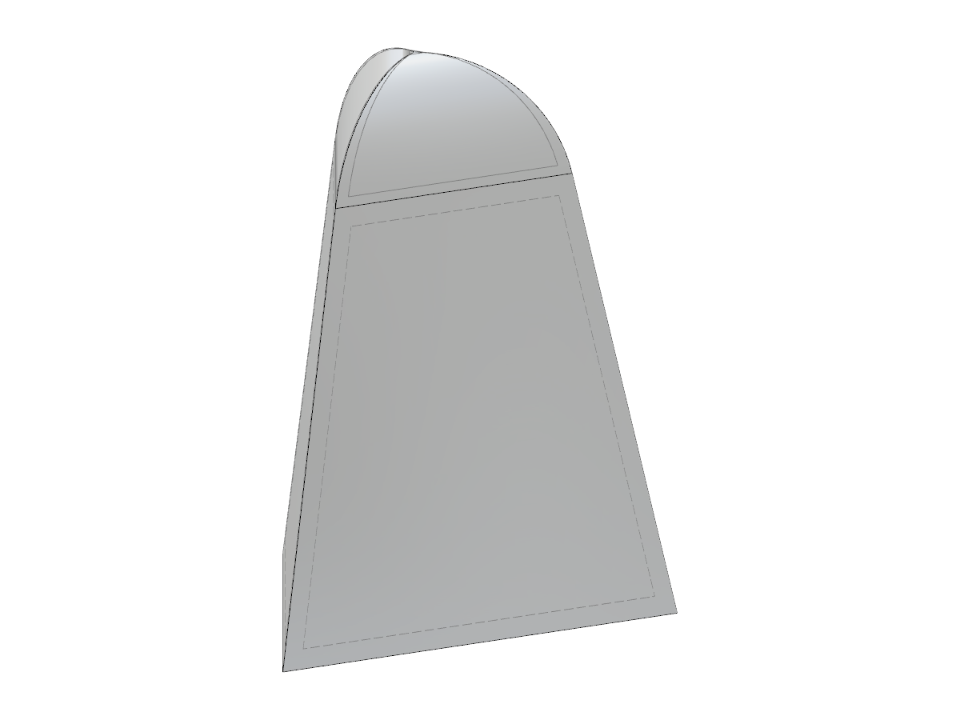

This model features a pyramid with a unique circular arc on its top part. It highlights advanced modeling capabilities in structures where geometric precision and aesthetic form are combined. Ideal for educational purposes or complex project simulations involving intricate geometry.
Pyramid with Circular Arc
| Block parameters editable dynamically | |
| Number of Nodes | 7 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 96.533 tons |
| Dimensions (Metric) | 5.000 x 6.378 x 4.330 m |
| Dimensions (Imperial) | 16.4 x 20.93 x 14.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
