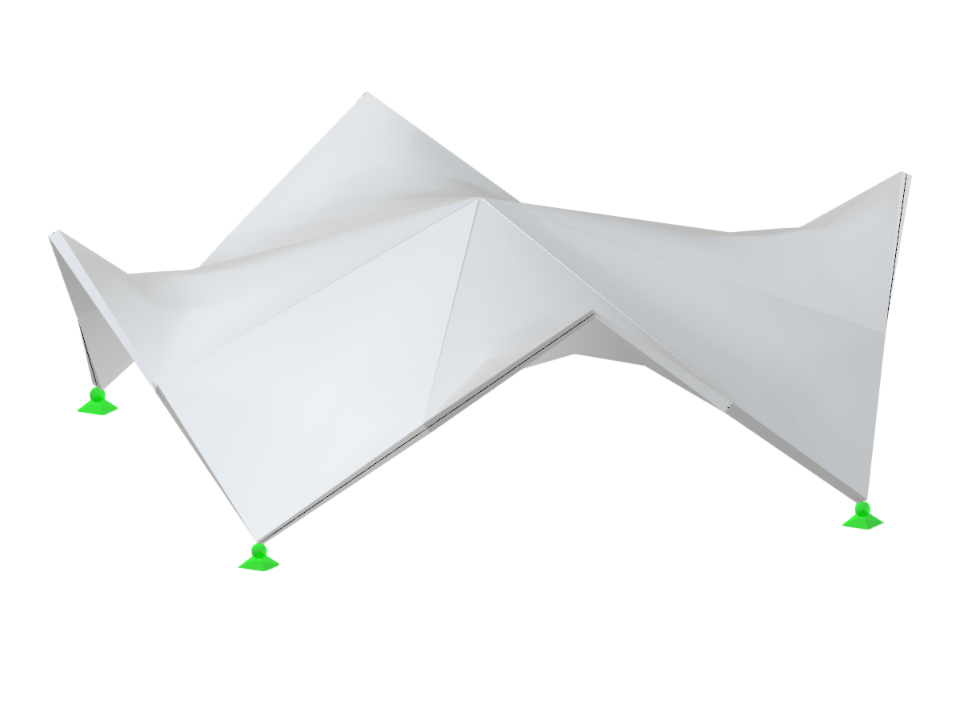

This model demonstrates the creation of anticlastic shells by defining the number of sides of a supporting polygon, along with its length and height. Anticlastic shells feature a double-curved surface, being convex in one direction and concave in another, typically used in architectural and structural applications. The flexibility in choosing the number of sides allows for customized shell geometries suited for various design requirements. This input method facilitates straightforward adjustments and manipulation of the shell form.
Anticlastic Shell Model Based on Support Polygon
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 24 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.005 tons |
| Dimensions (Metric) | 7.071 x 2.000 x 7.071 m |
| Dimensions (Imperial) | 23.2 x 6.56 x 23.2 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
