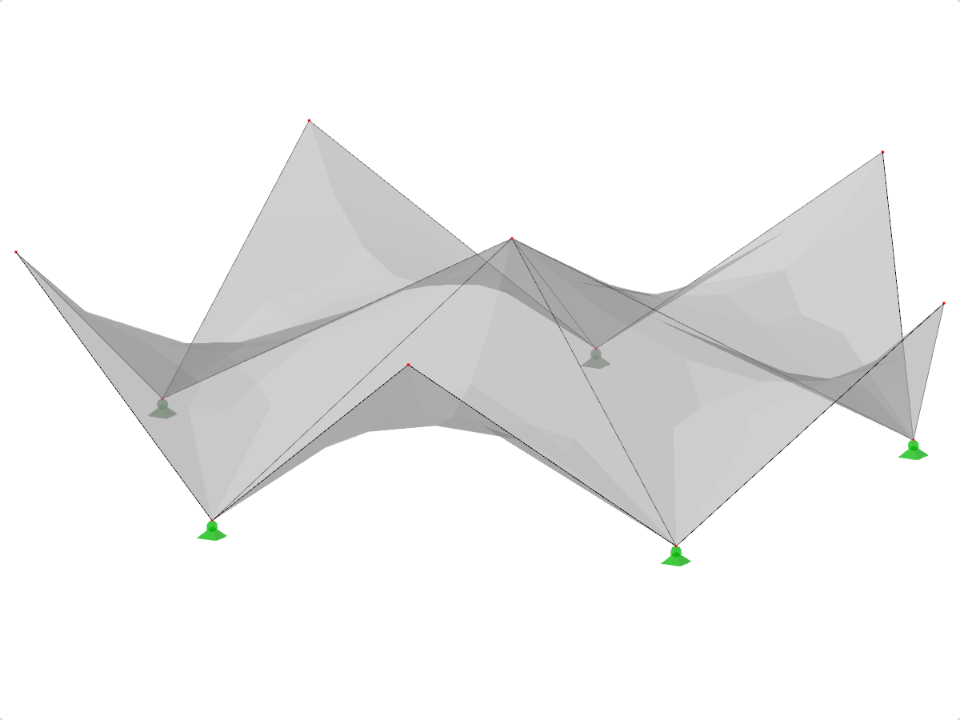

Explore the design of anticlastic shells, where input parameters include the number of sides (five or more), the length, and the height. This configuration harnesses the structural advantages of anticlastic geometry to achieve aesthetic and efficient forms. Such shells are often used in applications requiring lightweight and durable solutions.
Anticlastic Shell Design Parameters
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.034 tons |
| Dimensions (Metric) | 12.311 x 3.000 x 12.944 m |
| Dimensions (Imperial) | 40.39 x 9.84 x 42.47 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
