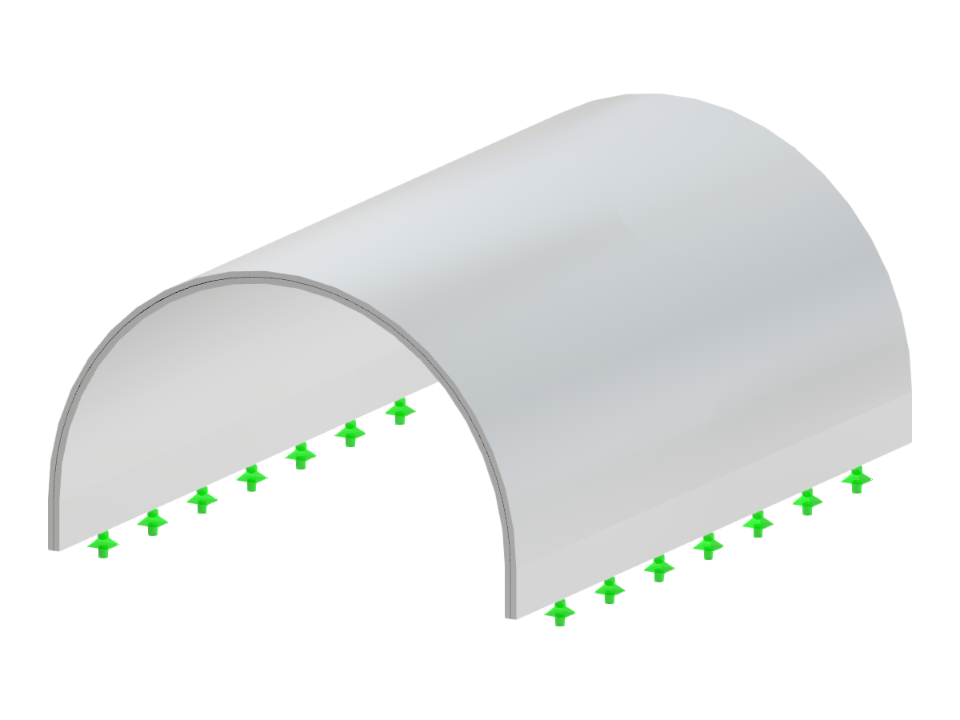

This model features a barrel vault structure with a half-cylindrical shape, reinforced by a vertical stiffener. The geometry is determined through height and radius, offering a robust solution for architectural or structural design needs. Such structures are commonly used in large spans due to their efficient load distribution. Ideal for industrial or commercial building applications.
Barrel Vault Structure with Vertical Stiffener
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 10.625 tons |
| Dimensions (Metric) | 4.000 x 2.400 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 7.87 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
