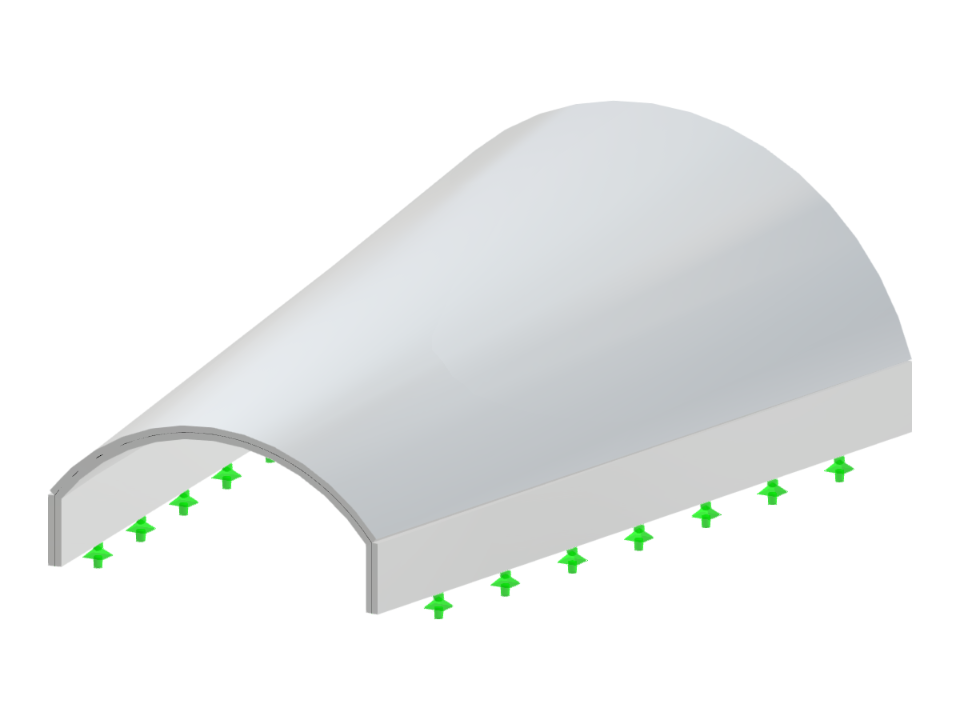

This model showcases a semi-cylindrical barrel vault with a variable radius at its ends, allowing for height and radius adjustments. The design provides flexibility in architectural and structural applications, meeting diverse aesthetic and functional requirements.
Barrel Vault with Variable Radius Geometry
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 7.713 tons |
| Dimensions (Metric) | 4.000 x 2.000 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 6.56 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
