Global RFEM Model of De Meernbrug

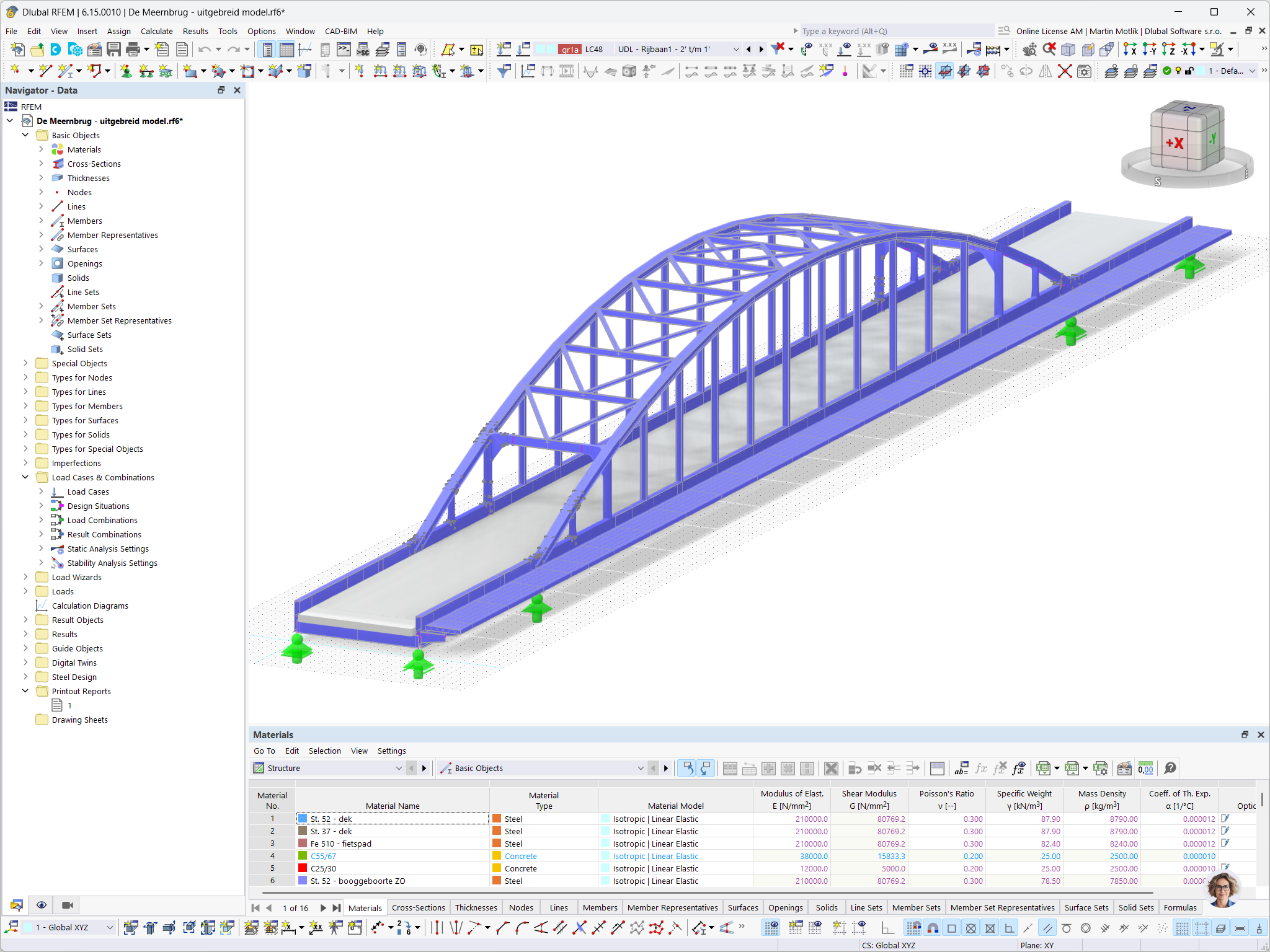

RFEM model of a steel arch bridge with arches, hangers, built-up main girders, and a concrete deck
Global RFEM model of De Meernbrug in Utrecht, showing the steel arches, hangers, main girders, cross-girders, wind bracing, and the continuous concrete deck. The materials table lists the historic steel grades St. 37 and St. 52 alongside the concrete of the deck. Model © Witteveen+Bos | Screenshot © Dlubal Software
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 91189 |
| Number of Lines | 68997 |
| Number of Members | 52910 |
| Number of Surfaces | 3690 |
| Number of Solids | 0 |
| Number of Load Cases | 393 |
| Number of Load Combinations | 50 |
| Number of Result Combinations | 102 |
| Total Weight | 2757.414 tons |
| Dimensions (Metric) | 181.240 x 20.656 x 19.540 m |
| Dimensions (Imperial) | 594.62 x 67.77 x 64.11 feet |
