Global Deformations Under Traffic Loading in RFEM

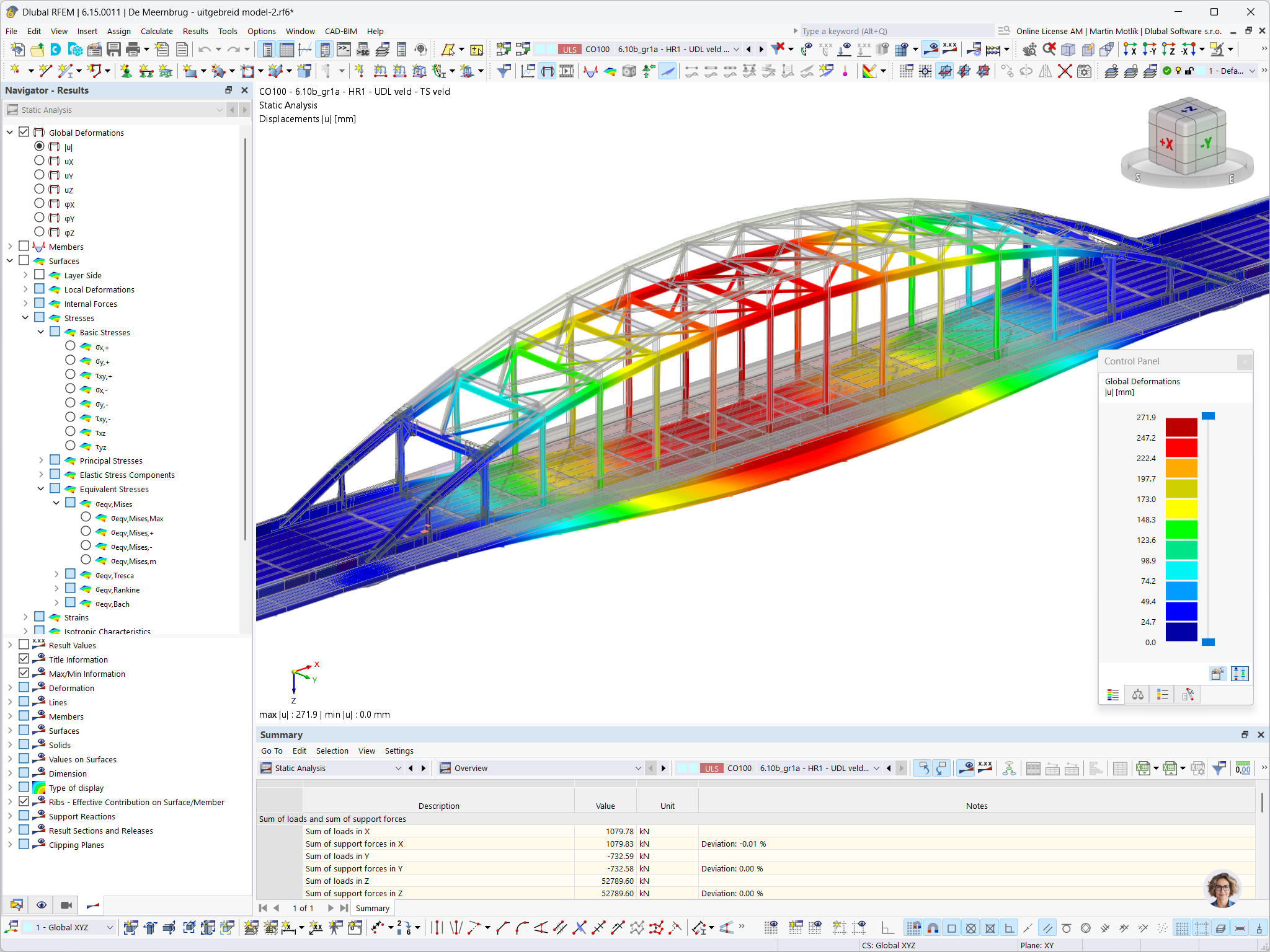

Global deformations of a steel arch bridge under a traffic load combination in RFEM
Global deformations of the bridge for an ultimate limit state combination with the tandem system and the uniformly distributed traffic load. The color scale shows how the deformation is distributed along the deck and the arches. Model © Witteveen+Bos | Screenshot © Dlubal Software
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 91189 |
| Number of Lines | 68997 |
| Number of Members | 52910 |
| Number of Surfaces | 3690 |
| Number of Solids | 0 |
| Number of Load Cases | 393 |
| Number of Load Combinations | 50 |
| Number of Result Combinations | 102 |
| Total Weight | 2757.414 tons |
| Dimensions (Metric) | 181.240 x 20.656 x 19.540 m |
| Dimensions (Imperial) | 594.62 x 67.77 x 64.11 feet |
