Wind Load Analysis of Building in RFEM

Wind load analysis of a multi-story building structure using RFEM, with a color-coded deformation display and a table of the centers of mass and of rigidity for each story.

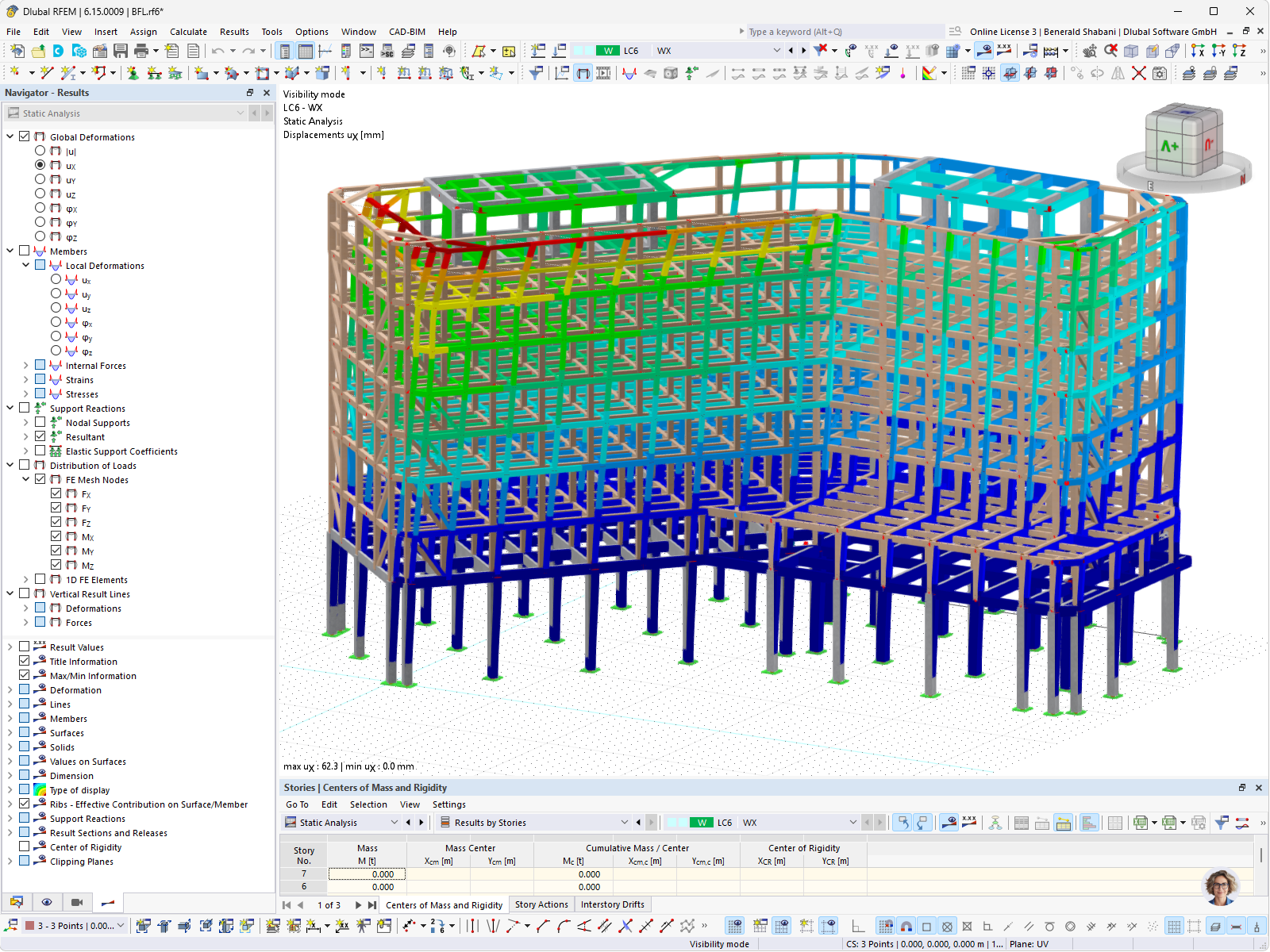

The image shows the user interface of the RFEM 6 software with the “BFL.rf6” model open. It displays a multi-story building structure as a member model, whose deformations in load case LF6 (wind load case WX) are color-coded from red through yellow and green to blue. In the “Results” navigator, global deflections are activated, with the deflection value uX selected. Below, the result table shows, by story, the mass, the centers of mass and rigidity, and cumulative values for each story. The “Centers of Mass and Rigidity,” “Story Loads,” and “Story Displacements” tabs are available for evaluating the story constraints.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 1206
Number of Lines 2206
Number of Members 2157
Number of Surfaces 10
Number of Solids 0
Number of Load Cases 7
Number of Load Combinations 22
Number of Result Combinations 2
Total Weight 2750.796 t
Dimensions (Metric) 82.882 x 54.000 x 64.021 m
Dimensions (Imperial) 271.92 x 177.17 x 210.04 feet
