Concrete Building with Parametric Number of Floors

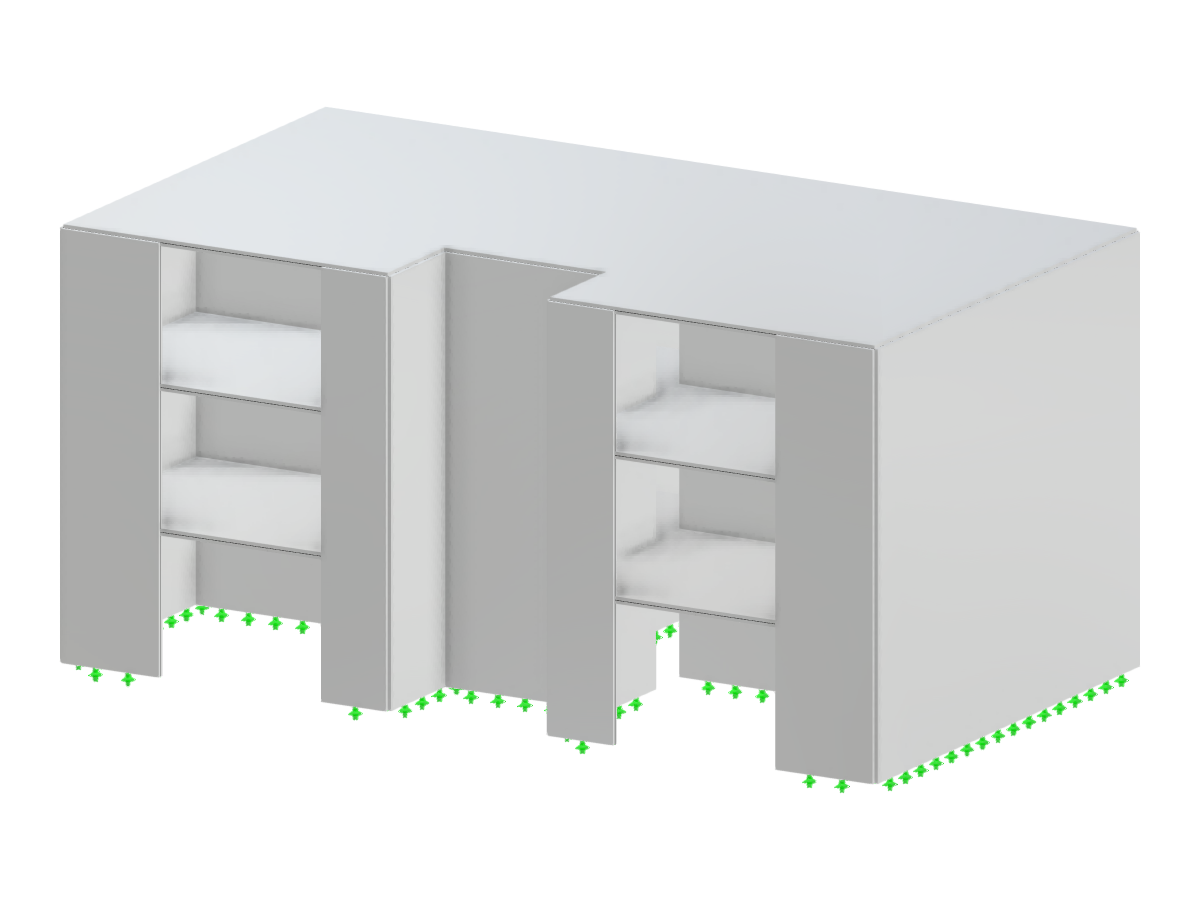

A concrete building model with parametric dimensions displays multiple floors created by distinct surfaces.
The image illustrates a concrete building model featuring parametric dimensions and a defined number of floors, each constructed through surfaces. This representation of a building highlights the flexibility of parametric design in structural analysis. The floors are aligned to create a cohesive structure, showcasing sophisticated modeling techniques. The model effectively demonstrates the practical application of surface modeling for complex architectural designs.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 124 |
| Number of Lines | 133 |
| Number of Members | 0 |
| Number of Surfaces | 33 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1121.500 tons |
| Dimensions (Metric) | 25.000 x 12.000 x 14.000 m |
| Dimensions (Imperial) | 82.02 x 39.37 x 45.93 feet |
