Equivalent Stresses and Plastic Strain of JD3 Model
Finite element analysis results showing equivalent von Mises stresses and plastic strains for a steel joint model, visualizing stress distribution and material behavior under load.

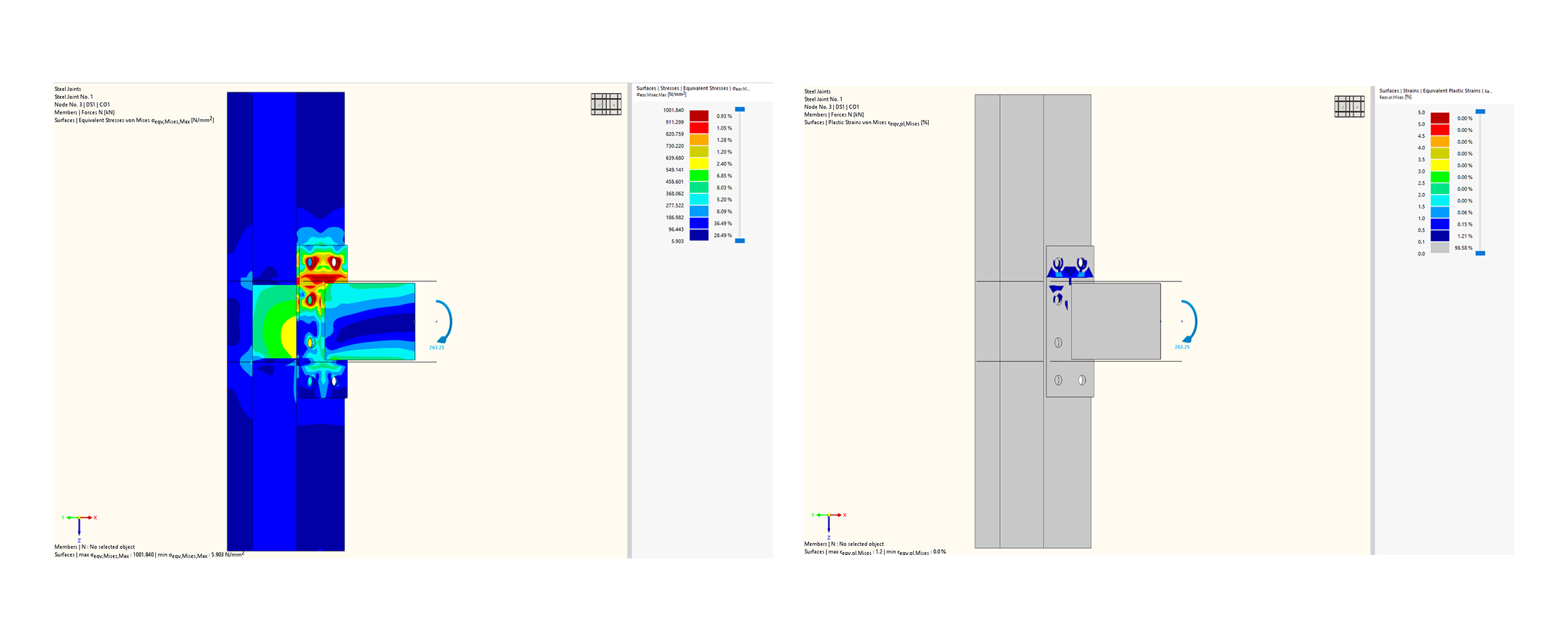

The display presents the results of a nonlinear finite element analysis for Steel Joint No. 1, Node No. 3 | DS1 | C01. The left graphic illustrates the distribution of equivalent von Mises stresses on surfaces, the right graphic depicts the equivalent plastic strains according to von Mises. These results allow for the evaluation of the load-bearing capacity and deformation behavior of the connection considering material nonlinearities.
