End Plate/Bolt Configuration of JD2 & JD3

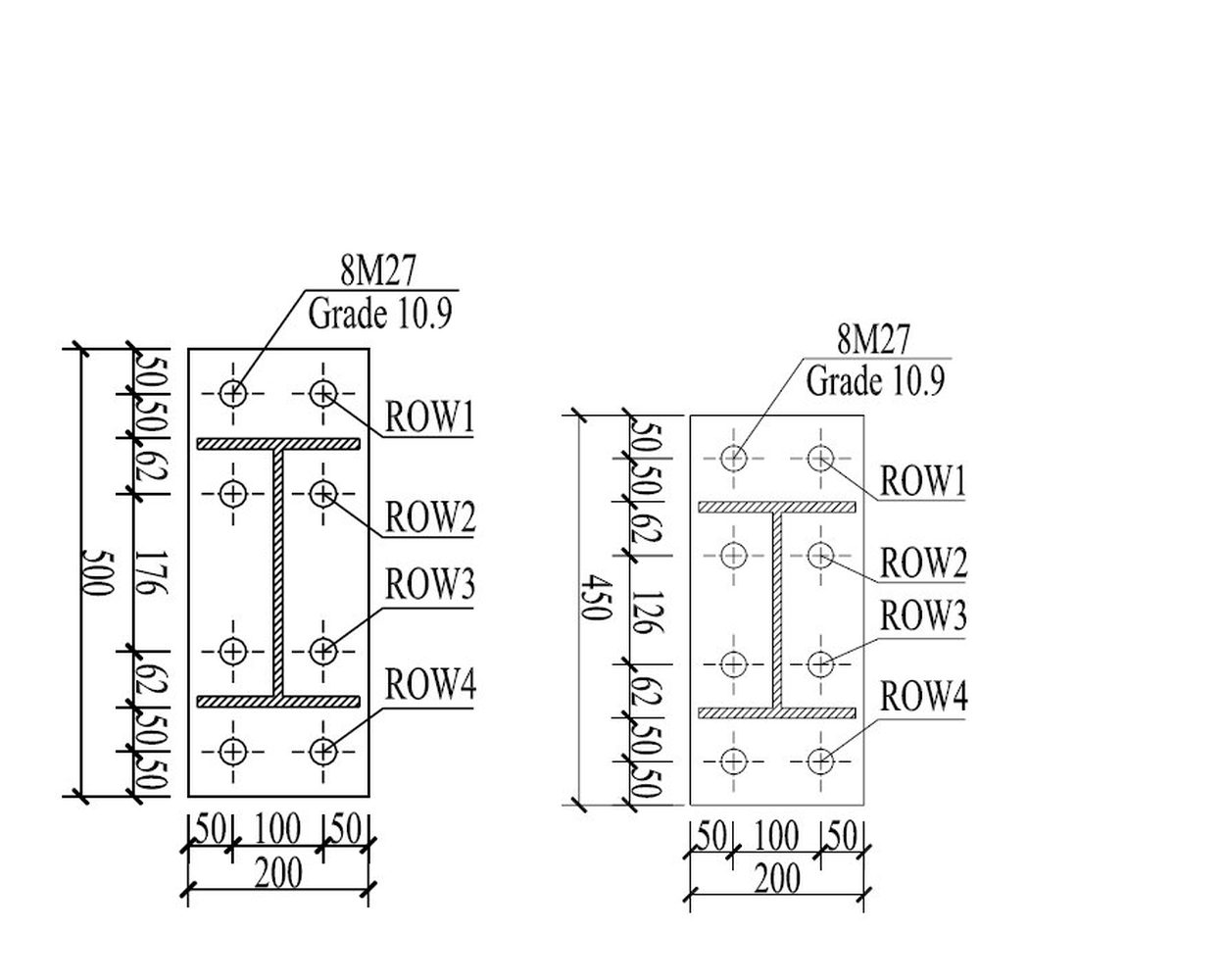

Technical drawing showing the end plate and bolt configuration for connections JD2 and JD3, detailing dimensions, bolt grades, and row arrangements.
The image shows the end plate and bolt configurations for connection types JD2 and JD3. Both configurations utilize eight M27 bolts, arranged in four rows.
