Anticlastic Shell with Support Polygon Input Method

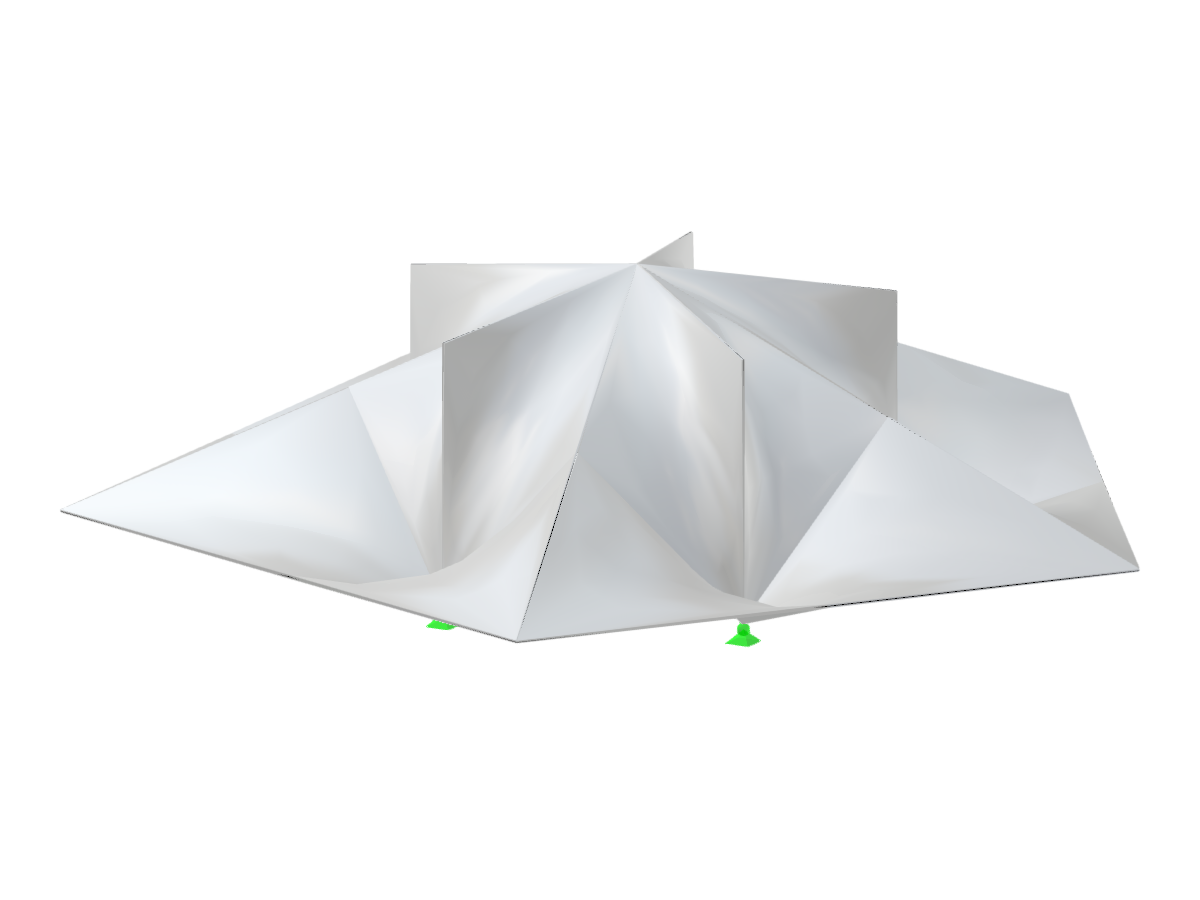

View of an anticlastic shell structure designed with input parameters such as the number of sides, length, and height of the support polygon.
The image illustrates an anticlastic shell structure where engineers can input the number of sides in the support polygon, along with its length and height. This parametrization allows for the precise modeling of complex shell geometries, enabling a clear understanding of spatial form and structural potential in architectural designs. Various inputs define the unique shape and curvature of such anticlastic shells, which are often used in modern architectural projects for their aesthetic and structural qualities.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 26 |
| Number of Lines | 45 |
| Number of Members | 0 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 245.738 tons |
| Dimensions (Metric) | 30.777 x 9.000 x 32.361 m |
| Dimensions (Imperial) | 100.97 x 29.53 x 106.17 feet |
