Defining Criteria of Stabilizing Surface: Type 'Surface'
Defining criteria of the stabilizing surface: Type 'Surface'

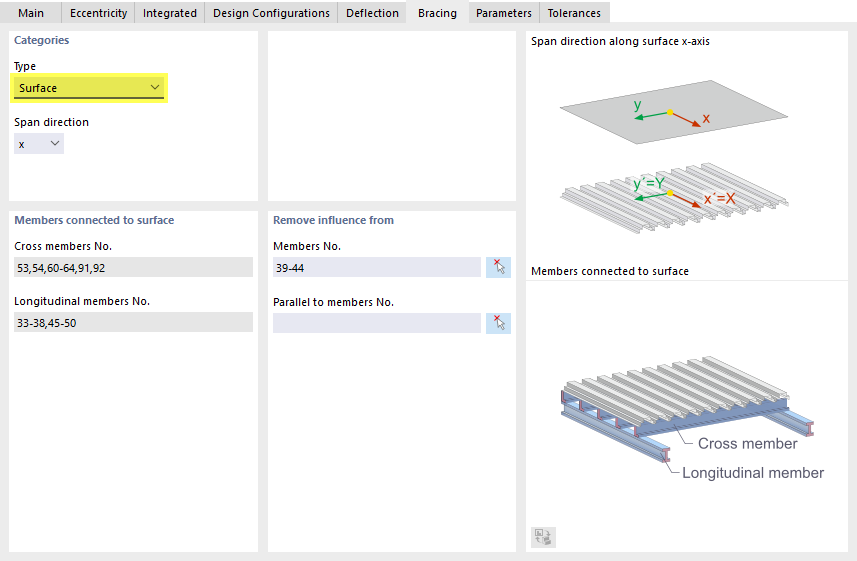

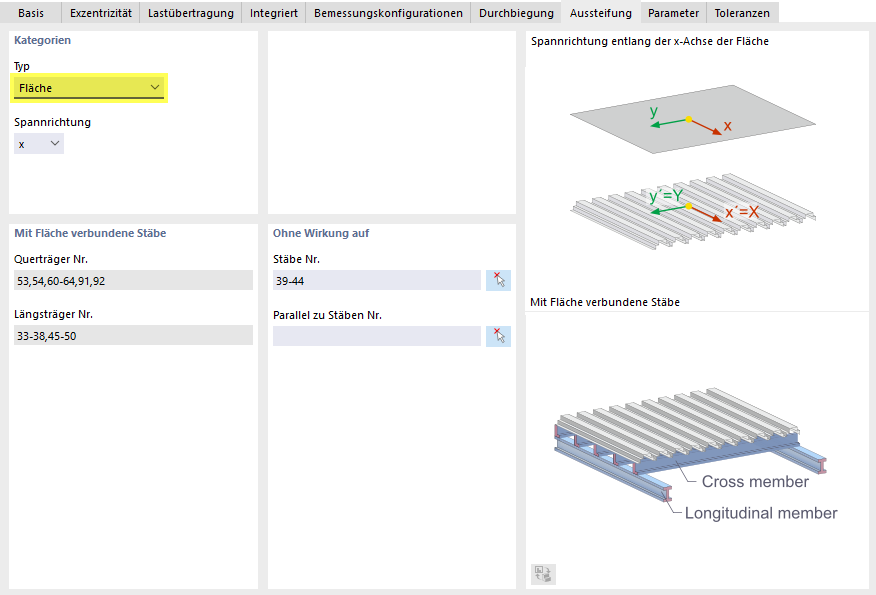

In the "Stiffening" tab of the surface transfer dialog, the "Surface" type is selected. The stress direction of the surface is set to the x-axis, as illustrated by a schematic graphic with the local coordinate system. Under "Members connected to surface", secondary beams (member numbers 53, 54, 60–64, 91, 92) and longitudinal beams (33–38, 45–50) are stored. In the "Without effect on" section, members 39–44 as well as parallel to members are excluded.
