Display Streamline Animation as Strips
Display streamlines animation as strips

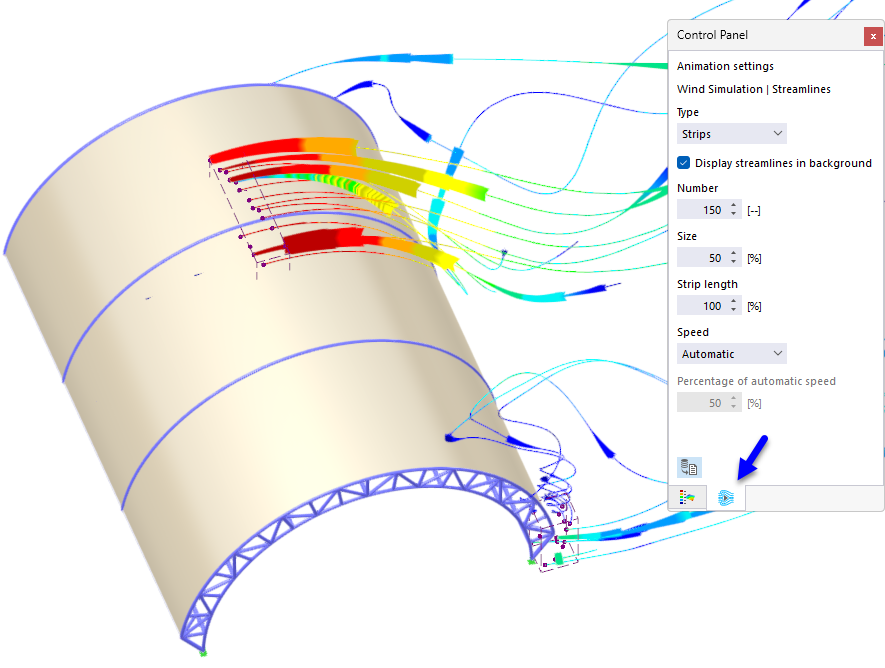

The control panel shows the animation settings of the wind simulation with the "Strip" display type. The streamlines start at seed points of the point cloud and run downstream over a cylindrical model with bracing. The color of the strips from red through yellow to cyan represents the local wind velocity. Set are 150 strips, a quantity of 50%, a strip length of 100%, and the automatic velocity.
