New Section Dialog Box

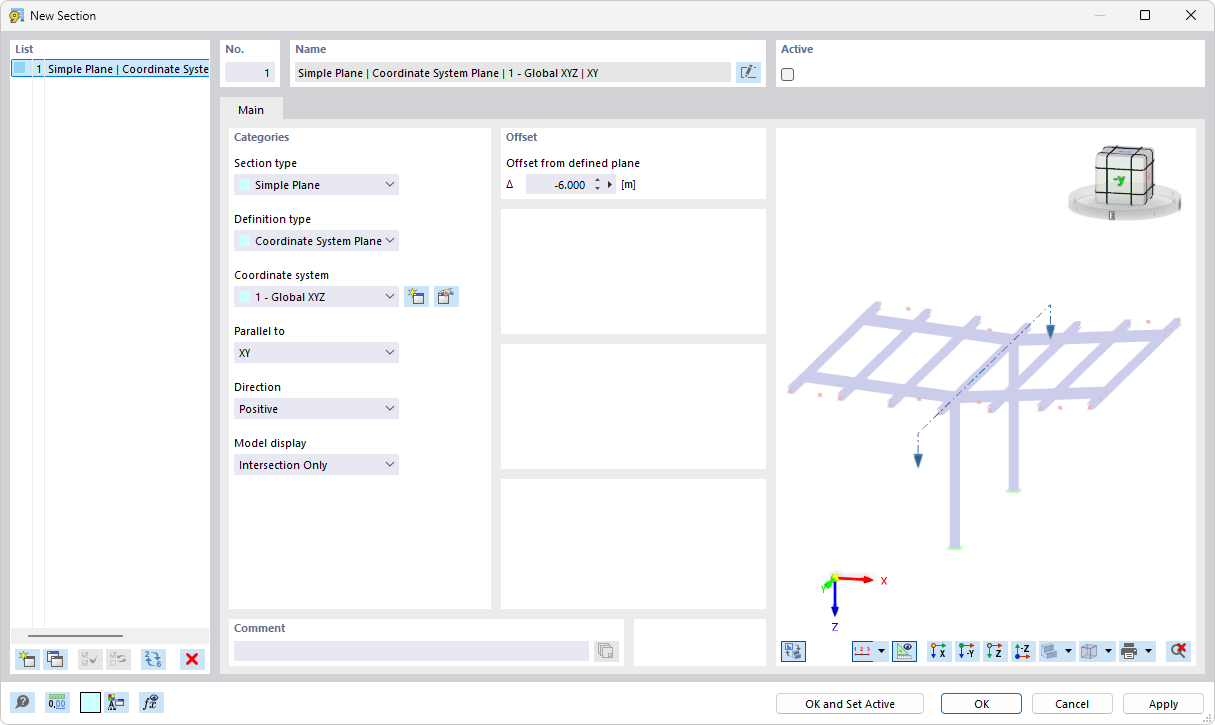

Dialog 'New Section'
In the 'New Section' dialog box, the section type 'Simple plane' is set with the definition type 'Plane of coordinate system'. The coordinate system is set to '1 - Global XYZ', and the section plane runs parallel to the XY-plane in the positive direction. The offset from the defined plane is -6.000 m. The model display is set to 'Intersection only'. The preview shows a structure with members as well as the section path through the structure.
