Dialog Box "New Section"
Dialog box "New Section"

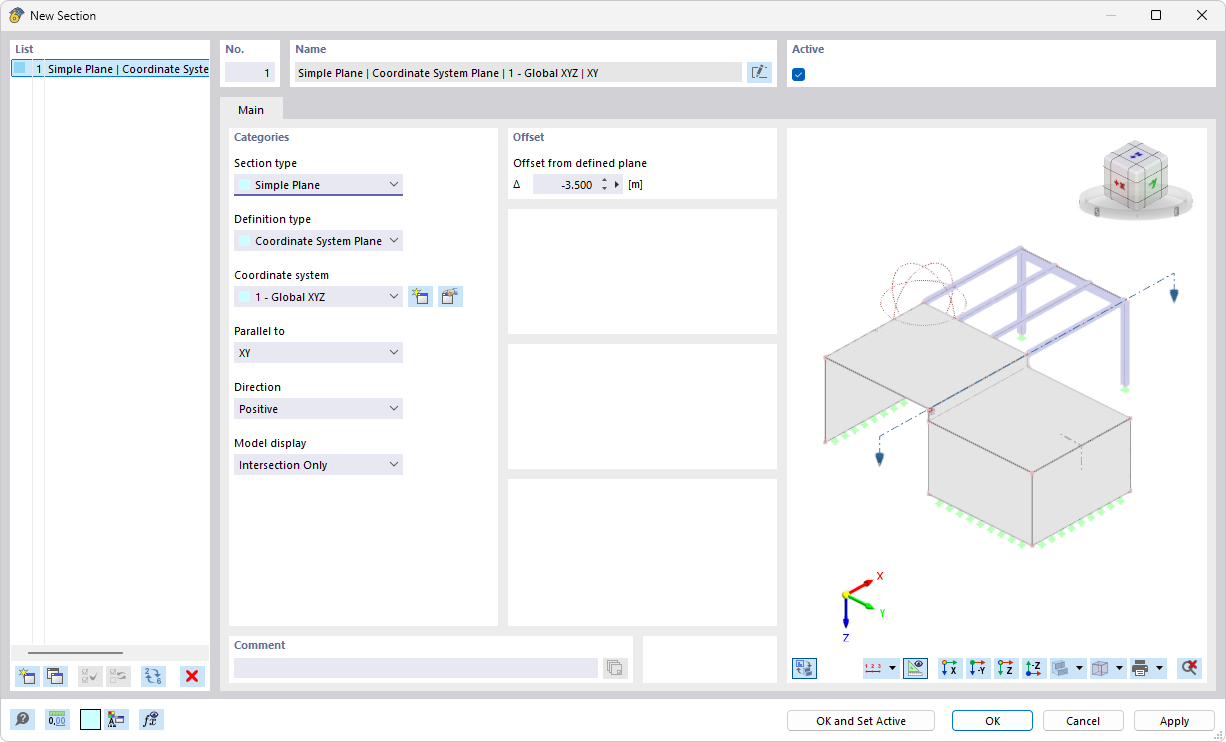

In the “New Section” dialog box, the “Simple Plane” section type is specified with the “Coordinate System Plane” definition type. The coordinate system is set to “1 - Global XYZ,” and the section plane runs parallel to the XY plane in the positive direction. The offset from the defined plane is -3.500 m. The model display is set to “Intersection Only”. The preview shows a structure with members and surfaces, as well as the section path through the structure.
