Merging Parts in RSECTION

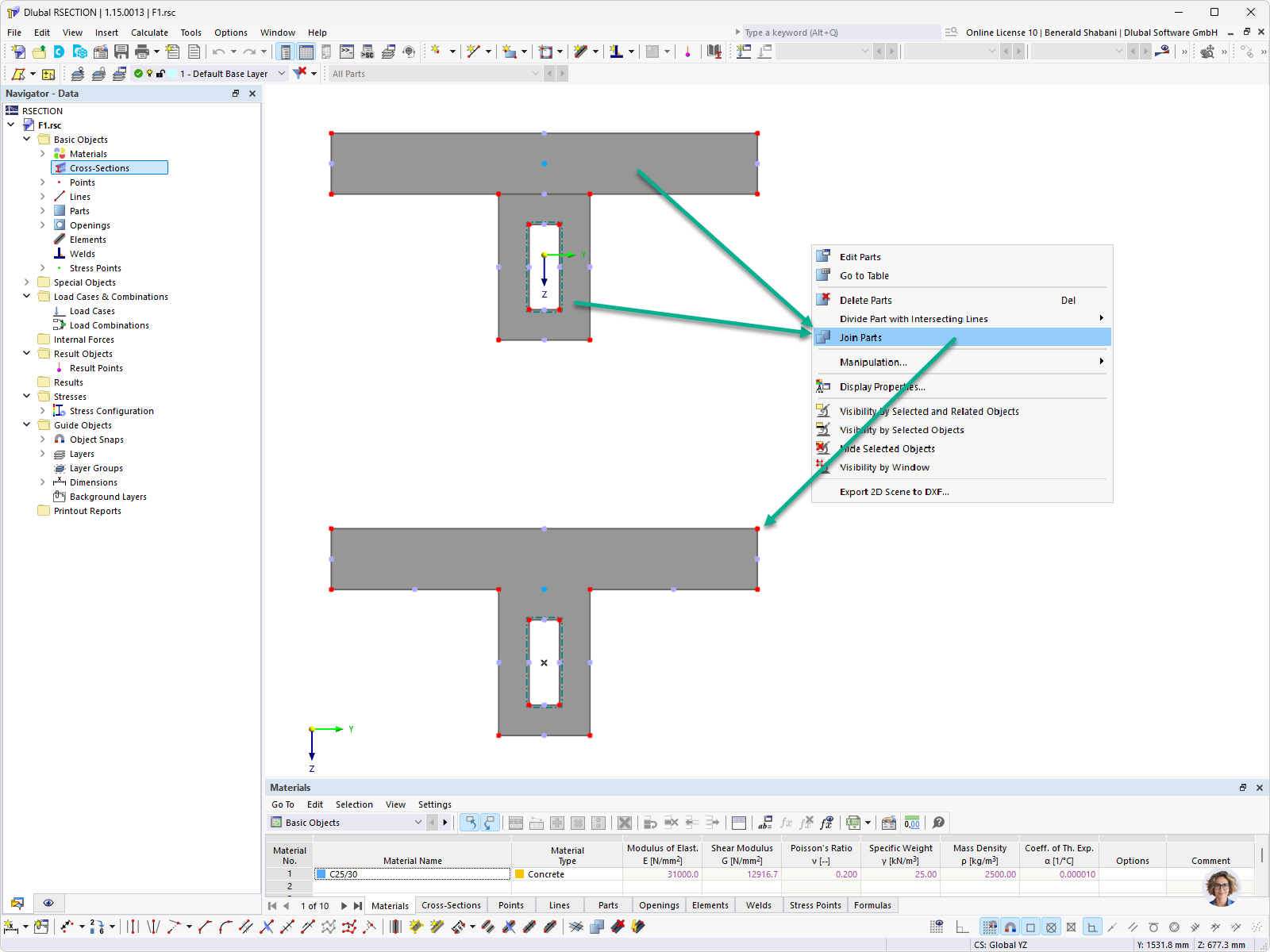

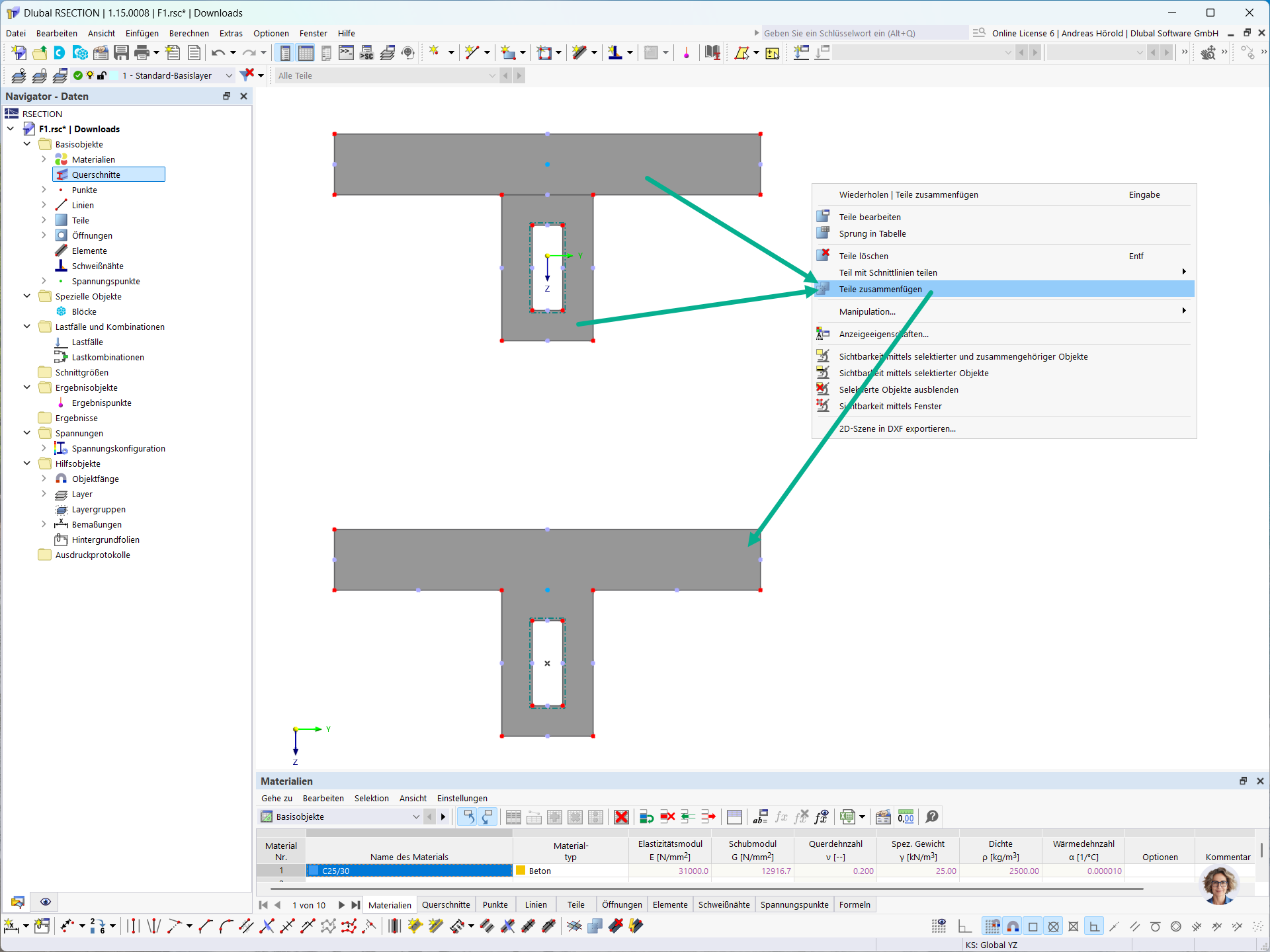

The software interface shows how individual parts are merged into a T-shaped cross-section with a cavity and material definitions.
In the RSECTION software, multiple partial cross-sections are combined using the “Merge Parts” feature to form a complex T-shaped cross-section with an internal cavity. The material used is C25/30 concrete with a density of 25 kN/m³. The display shows the process of geometrically merging basic objects in the “Cross-Sections” workspace.
