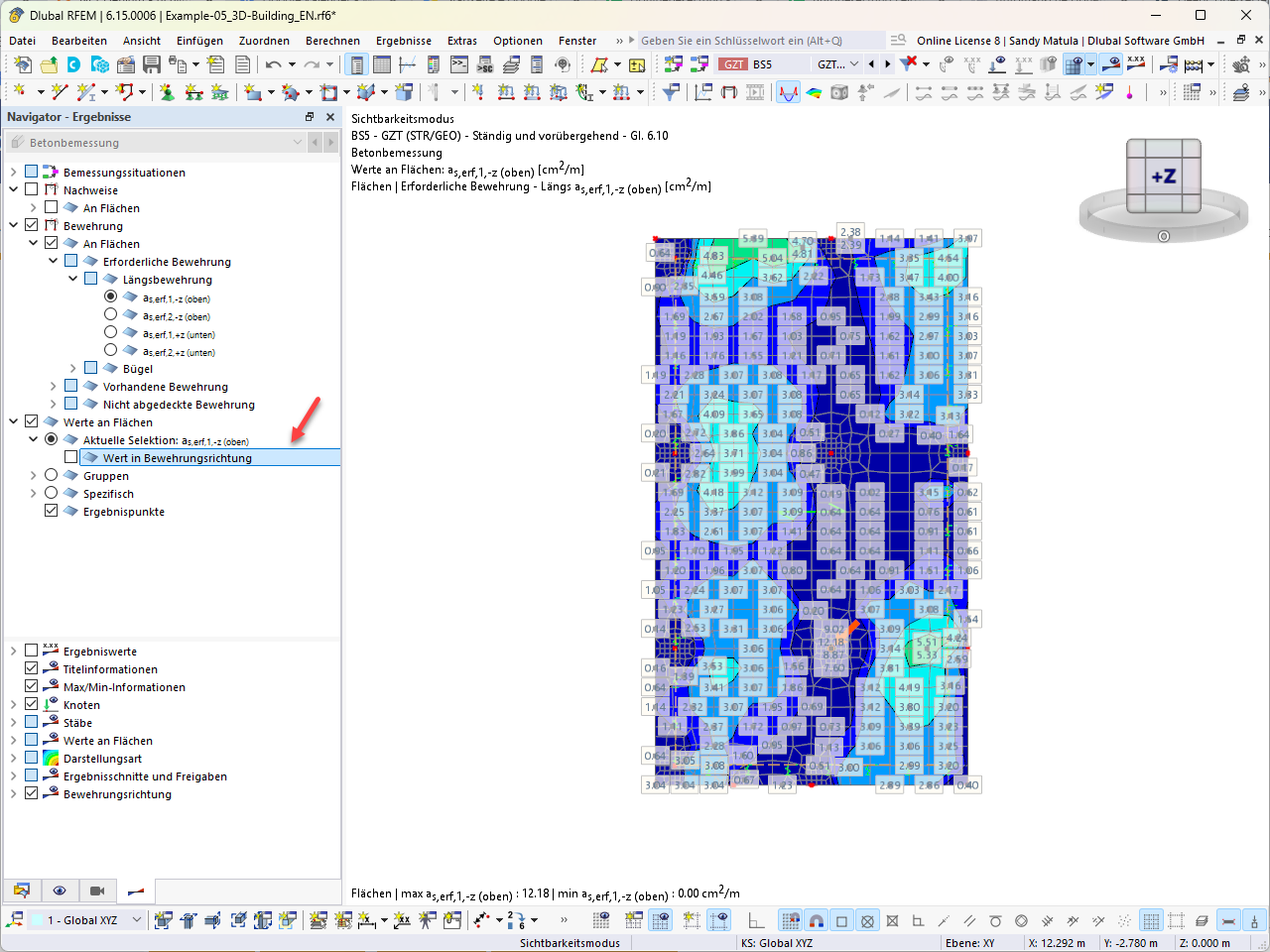

Result Graphic with Required Reinforcement on Surfaces
Graphical display of the required longitudinal reinforcement for surface elements in design software, showing a color scale and numerical values.
The image shows the graphical results of a concrete design for load case BS5 - GZ1 (STR/GEO) in the “Permanent and Temporary” state according to Eq. 6.10. The focus is on determining the required reinforcement for surface elements, with the values for the longitudinal reinforcement (as, req1, z) (above) displayed in cm²/m. The Navigator lists various evaluation options, such as longitudinal and provided reinforcement as well as stirrups; the “Value in Reinforcement Direction” option is deactivated here. The isolines and numerical values on the finite element surfaces visualize the distribution of the amounts of reinforcement, with a maximum value of 12.18 cm²/m shown.
