Timber Geodesic Dome Structure

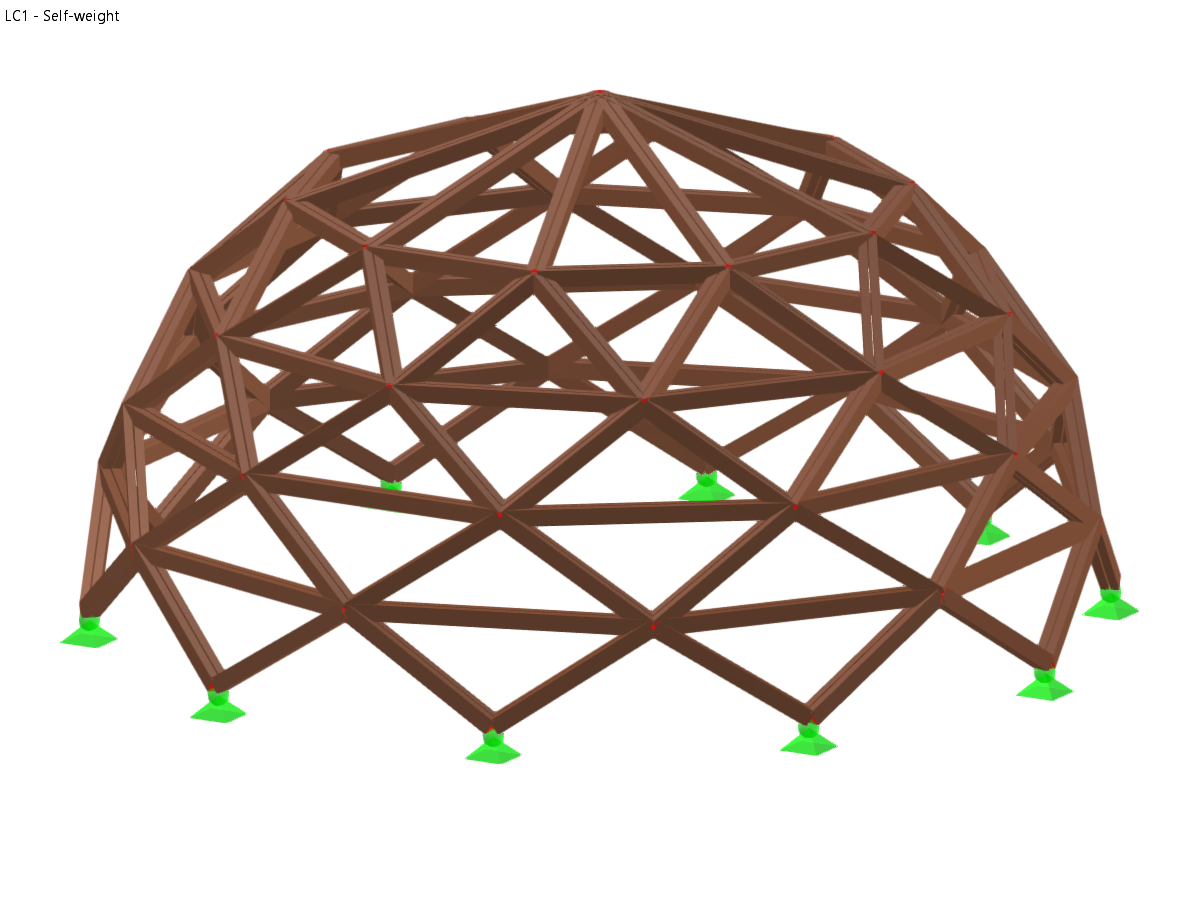

Detailed view of a timber geodesic dome highlighting the triangulated framework and wooden joints.
The image depicts a timber geodesic dome, showcasing its complex triangulated framework. The interconnected wooden joints are highlighted, illustrating the intricate design and structural integrity typical of geodesic domes. The use of timber material is evident, contributing to both the aesthetic and functional aspects of the structure. Such a design is often employed for its efficiency and ability to cover large spaces without internal supports, providing both strength and versatility.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 51 |
| Number of Lines | 130 |
| Number of Members | 130 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.400 tons |
| Dimensions (Metric) | 6.000 x 3.000 x 5.879 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 19.29 feet |
