Two-Sided Curved Arc Shelter Structure

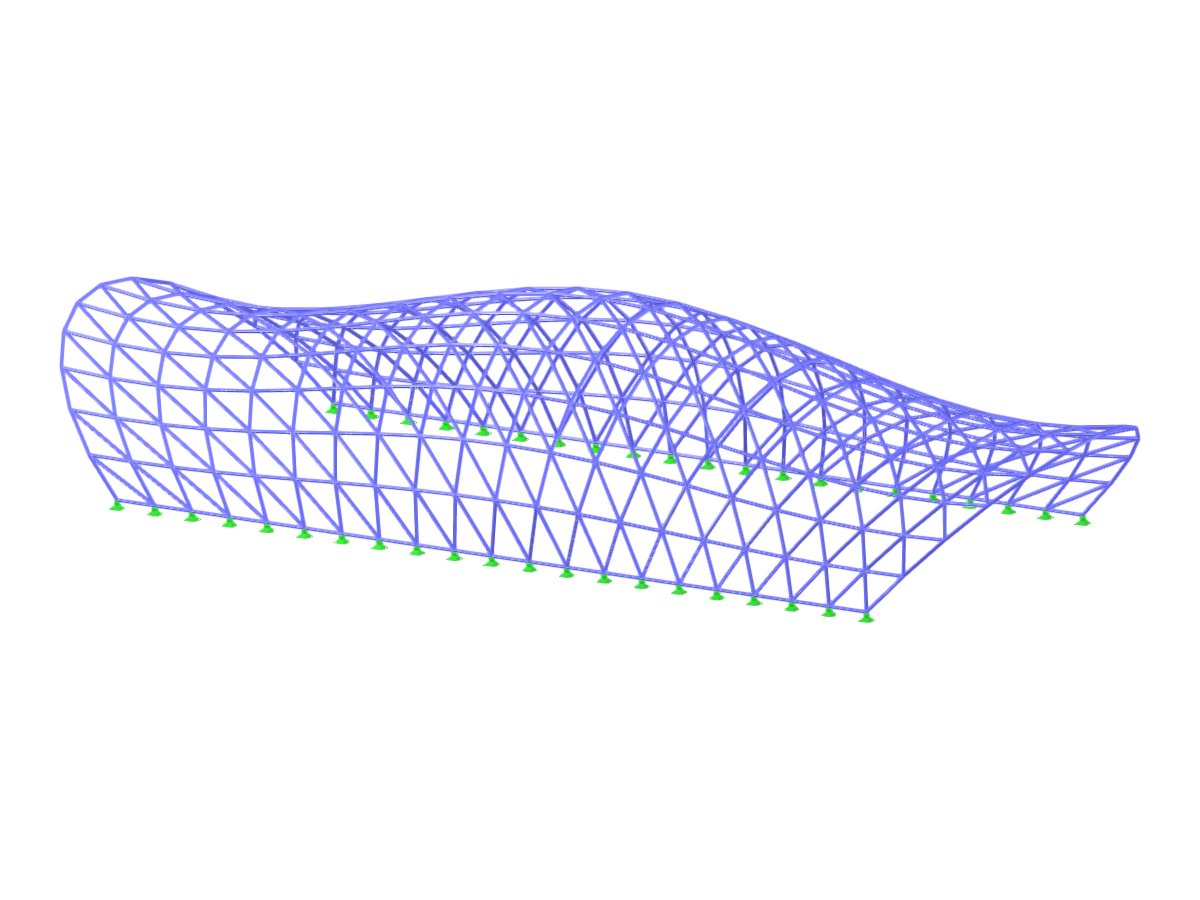

Curved shelter structure with dual arcs formed by interconnected members, designed for stability and aesthetic appeal.
The image shows a shelter structure with a distinctive dual-sided arc design, built using interconnected members. The arcs provide structural stability, while also enhancing visual aesthetics. This design efficiently uses space and material, making it suitable for various architectural applications. The interconnected members illustrate precise engineering techniques used in constructing modern shelters.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 273 |
| Number of Lines | 773 |
| Number of Members | 752 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 14.950 tons |
| Dimensions (Metric) | 40.000 x 7.500 x 15.000 m |
| Dimensions (Imperial) | 131.23 x 24.61 x 49.21 feet |
