Parabolic Curve Shelter Structure

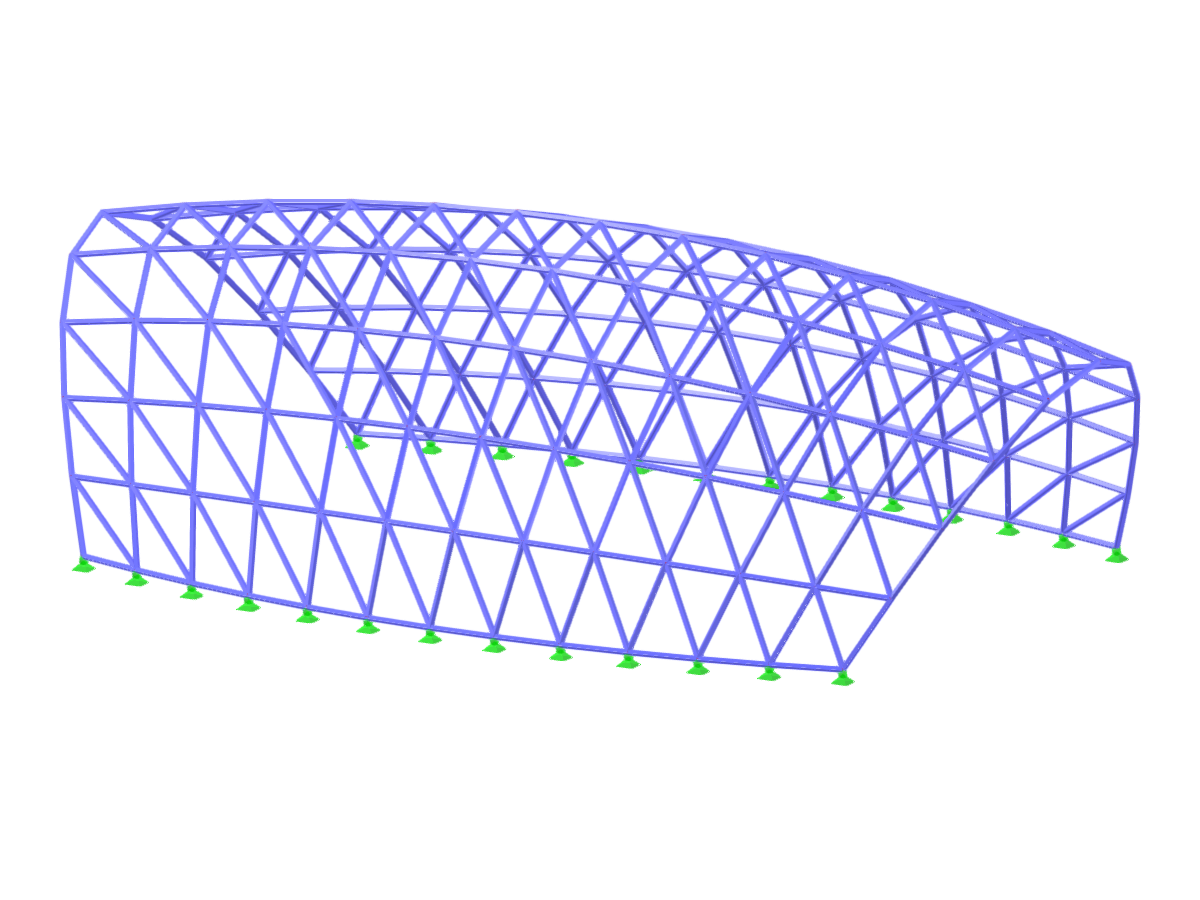

A parabolic curve shelter constructed using a two-sided curve, designed with structural members for stability and aesthetics.
A shelter created using a two-sided parabolic curve showcases the use of structural members to achieve both functionality and visual appeal. The construction emphasizes a combination of geometric precision and aesthetic design in structural engineering.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 143 |
| Number of Lines | 395 |
| Number of Members | 382 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 6.880 tons |
| Dimensions (Metric) | 25.193 x 8.525 x 12.400 m |
| Dimensions (Imperial) | 82.65 x 27.97 x 40.68 feet |
