Semi-Spherical Shell Structure Built with Members
Semi-spherical shell structure created using curved members for advanced architectural design.

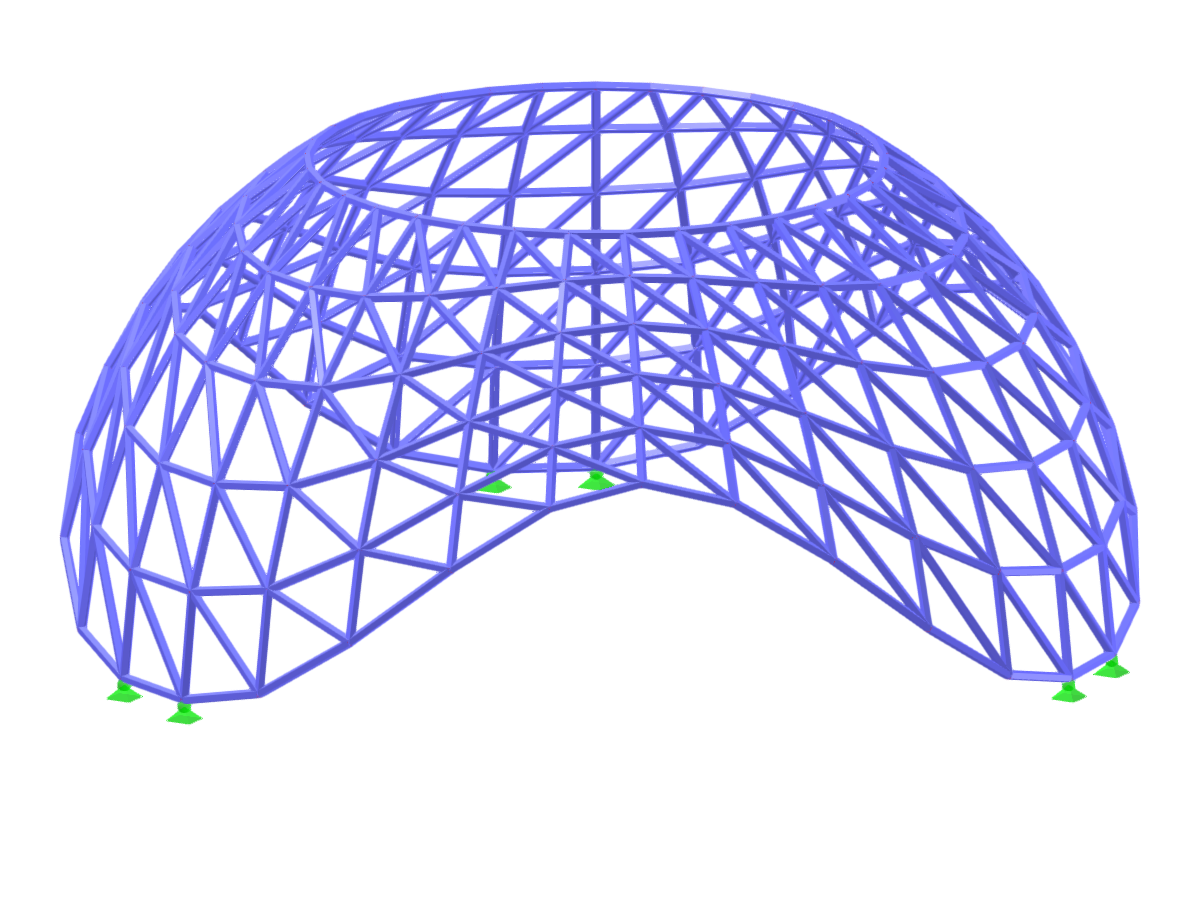

The image depicts a semi-spherical shell structure constructed using members aligned in a curved configuration. This design utilizes advanced geometric principles to achieve a unique architectural form, which showcases the potential for modern, complex structures. The members collectively form a continuous, seamless curve, emphasizing both aesthetic and structural elements without additional context needed.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 198 |
| Number of Lines | 528 |
| Number of Members | 528 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 6.290 tons |
| Dimensions (Metric) | 12.992 x 5.769 x 13.358 m |
| Dimensions (Imperial) | 42.62 x 18.93 x 43.83 feet |
