3D Rectangular Truss Structure
Rectangular truss structure modeled in 3D, suitable for RSTAB software applications.

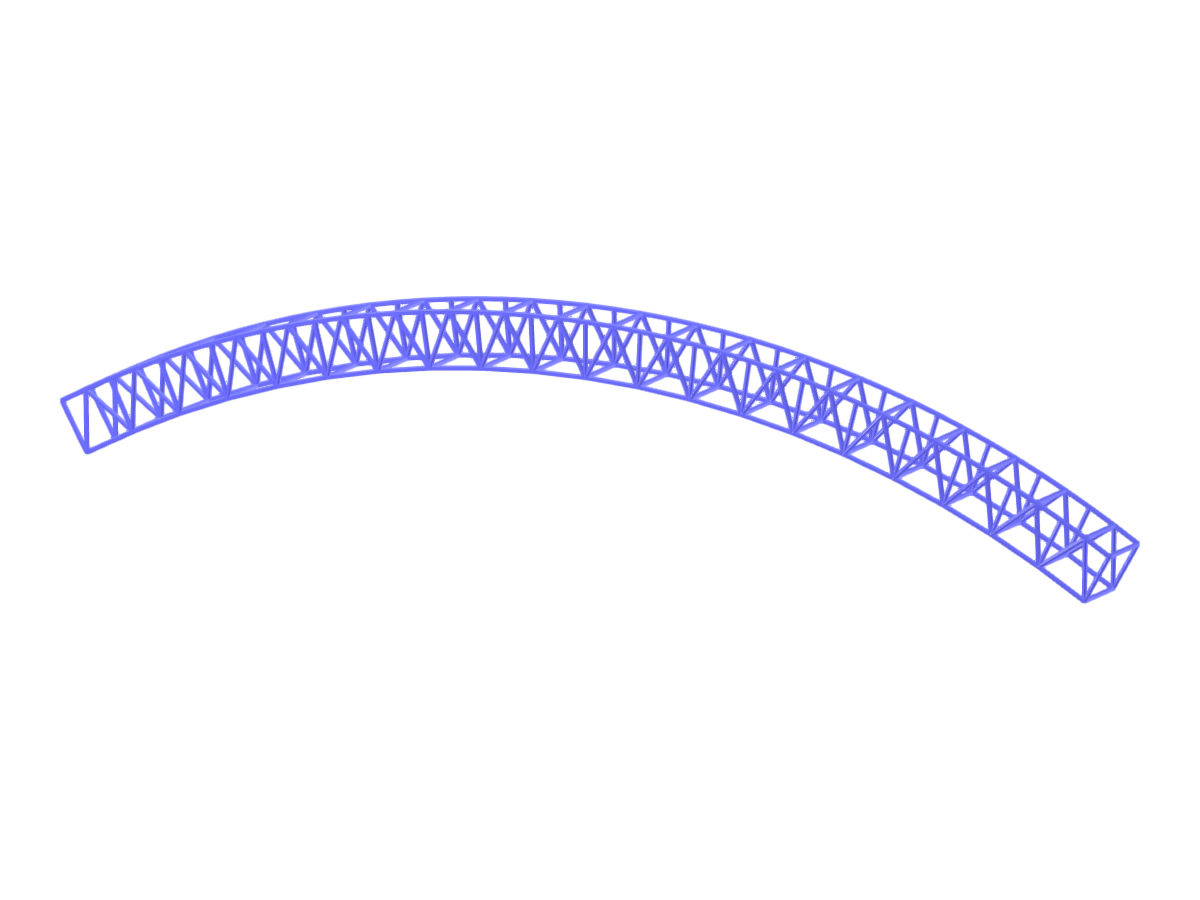

This image displays a 3D model of a rectangular truss designed for use with RSTAB, showcasing the integration of curved elements in the truss structure for enhanced architectural design. The truss is structured to demonstrate typical engineering analysis capabilities offered by structural analysis software RSTAB.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 244 |
| Number of Lines | 285 |
| Number of Members | 285 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.506 tons |
| Dimensions (Metric) | 21.000 x 3.679 x 1.000 m |
| Dimensions (Imperial) | 68.9 x 12.07 x 3.28 feet |
