Duopitch 2D Truss Non-Symmetric Structure

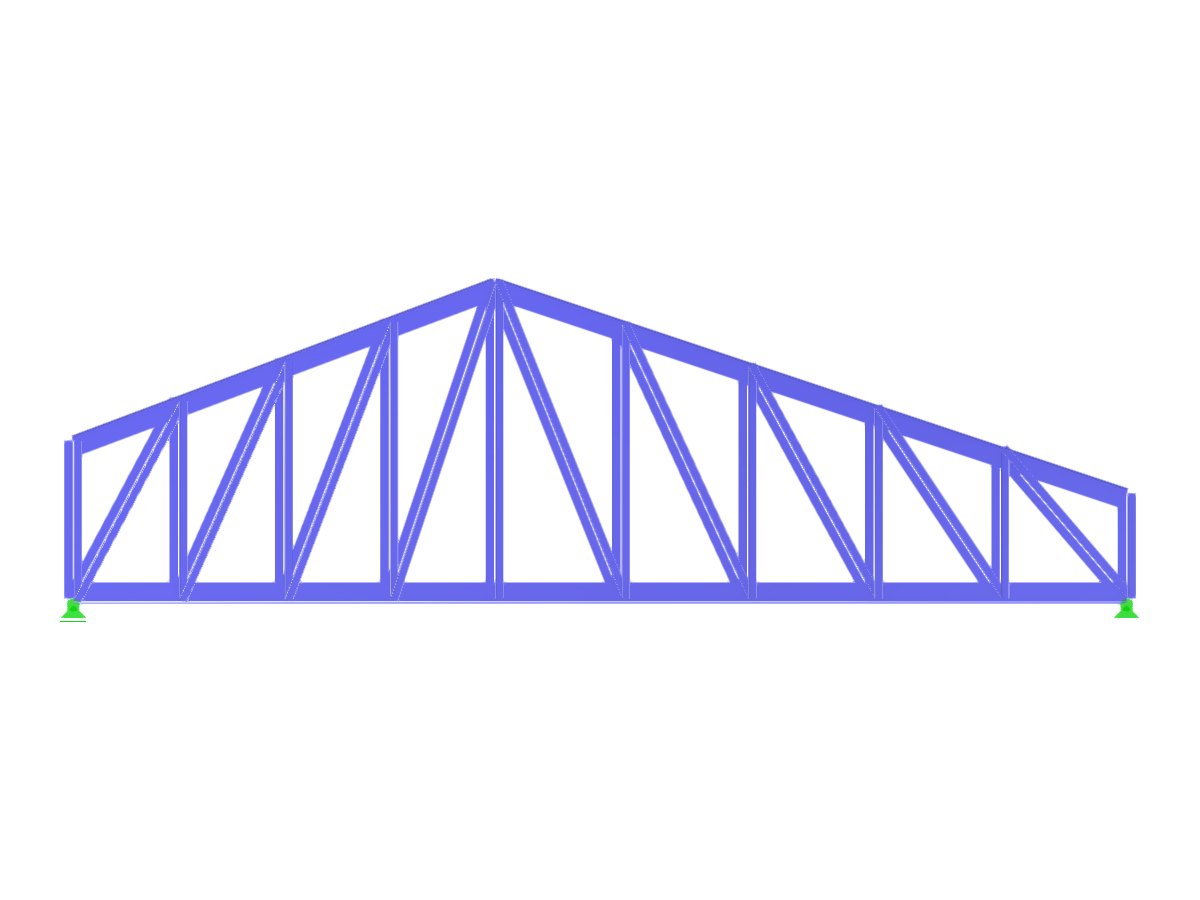

View of an asymmetric duopitch 2D truss with distinct non-symmetric features.
The image showcases a non-symmetric duopitch 2D truss, illustrating its structural configuration and geometric details. The design emphasizes its asymmetry with variations in pitch. This type of truss is commonly used to study load distribution and structural integrity.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 37 |
| Number of Members | 37 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.589 tons |
| Dimensions (Metric) | 10.000 x 3.000 x 0.000 m |
| Dimensions (Imperial) | 32.81 x 9.84 x 0 feet |
