Noise and Wind Barrier Construction

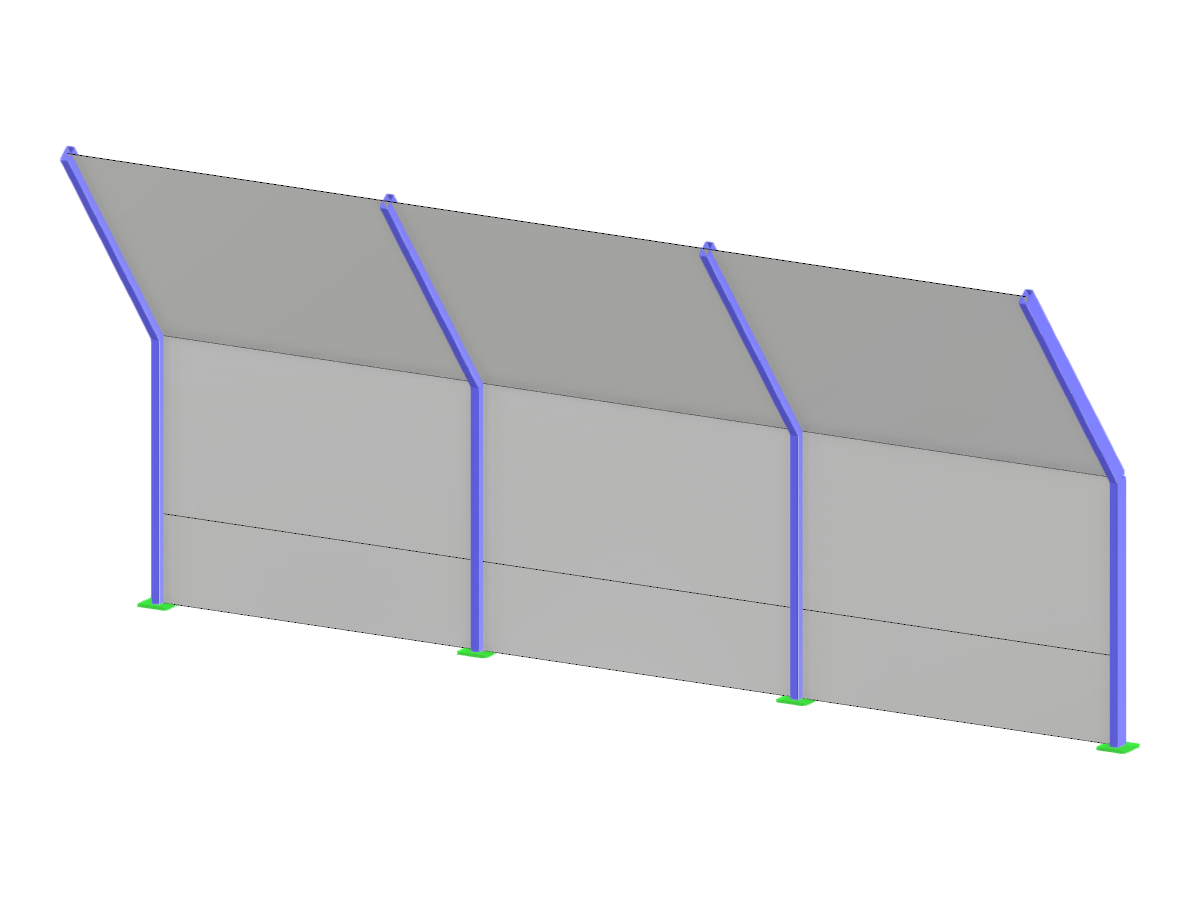

Detailed visualization of a noise and wind barrier structure with contextual engineering elements.
This image showcases a noise and wind barrier designed to reduce environmental disturbance. The structure is meticulously engineered to provide both sound insulation and wind resistance. It highlights the technical aspects and engineering considerations involved in its construction. The importance of such barriers in managing environmental impacts is evident through this visual representation.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 28 |
| Number of Members | 8 |
| Number of Surfaces | 9 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 13.819 tons |
| Dimensions (Metric) | 12.000 x 5.500 x 2.000 m |
| Dimensions (Imperial) | 39.37 x 18.04 x 6.56 feet |
