Curved Solid with Variable Radius and Degree

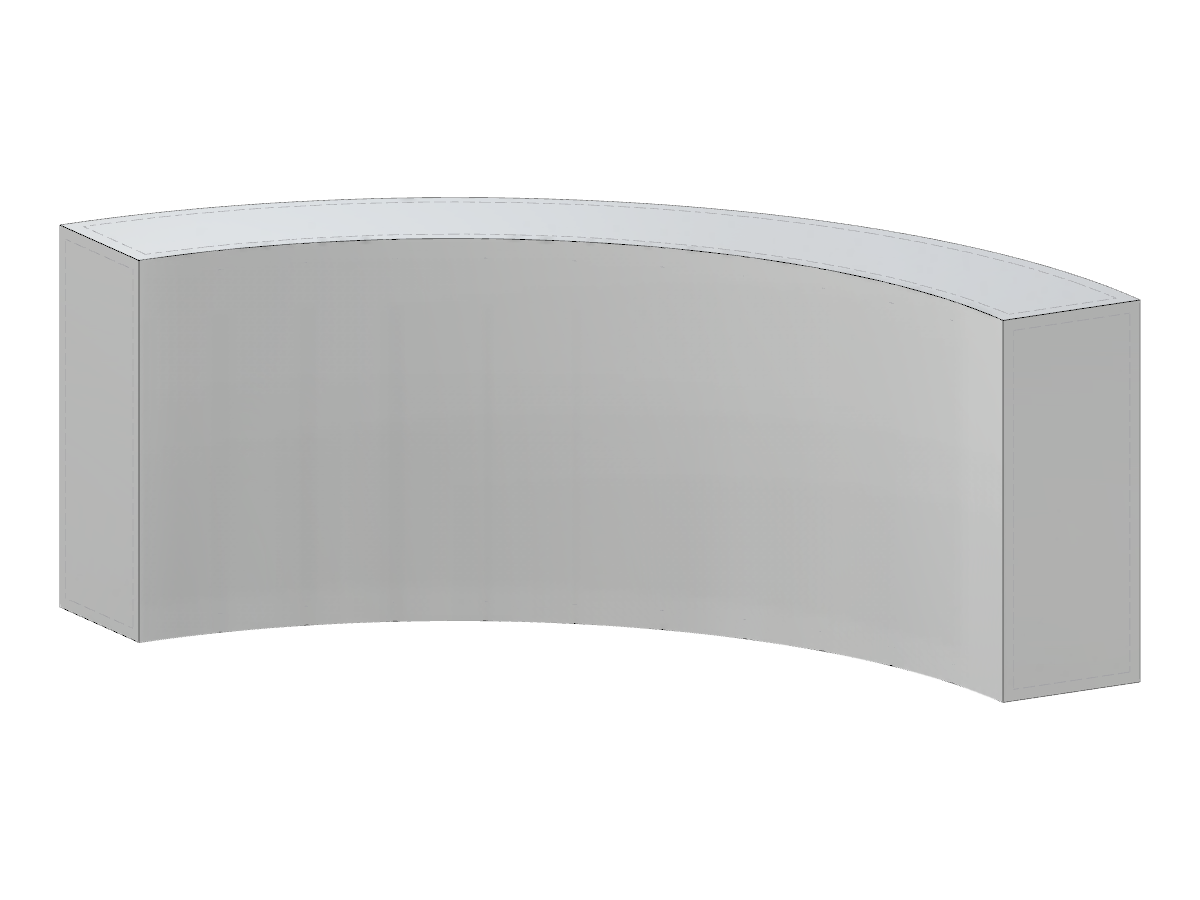

Curved solid structure with varying radius and degree showcased in a detailed engineering model.
The image illustrates a curved solid with a variable radius and degree, created as part of an engineering model. The structure demonstrates complex geometric features suitable for analysis in finite element simulations. This model may aid in understanding the distribution of stresses and deformations in unique structural scenarios.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 353.428 tons |
| Dimensions (Metric) | 13.660 x 5.000 x 6.000 m |
| Dimensions (Imperial) | 44.82 x 16.4 x 19.69 feet |
