Steel Structure Ramp Turn Design

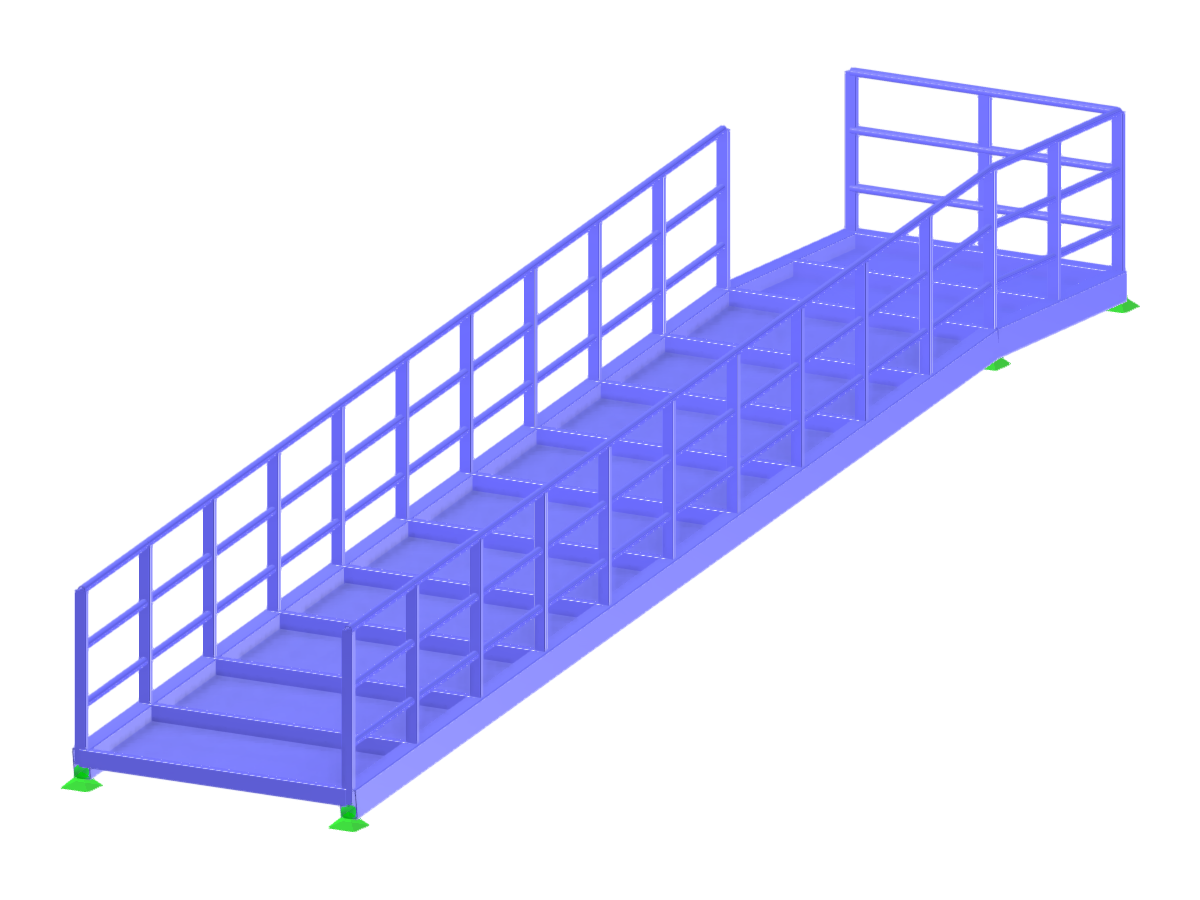

Structural analysis model of a steel ramp with an upward-left turn, showcasing its detailed framework.
The image depicts a detailed structural analysis model of a steel ramp designed with an upward-left turn. The steel frame configuration is shown, illustrating its complexity and precision in design.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 111 |
| Number of Lines | 139 |
| Number of Members | 139 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.421 tons |
| Dimensions (Metric) | 2.400 x 2.800 x 12.000 m |
| Dimensions (Imperial) | 7.87 x 9.19 x 39.37 feet |
