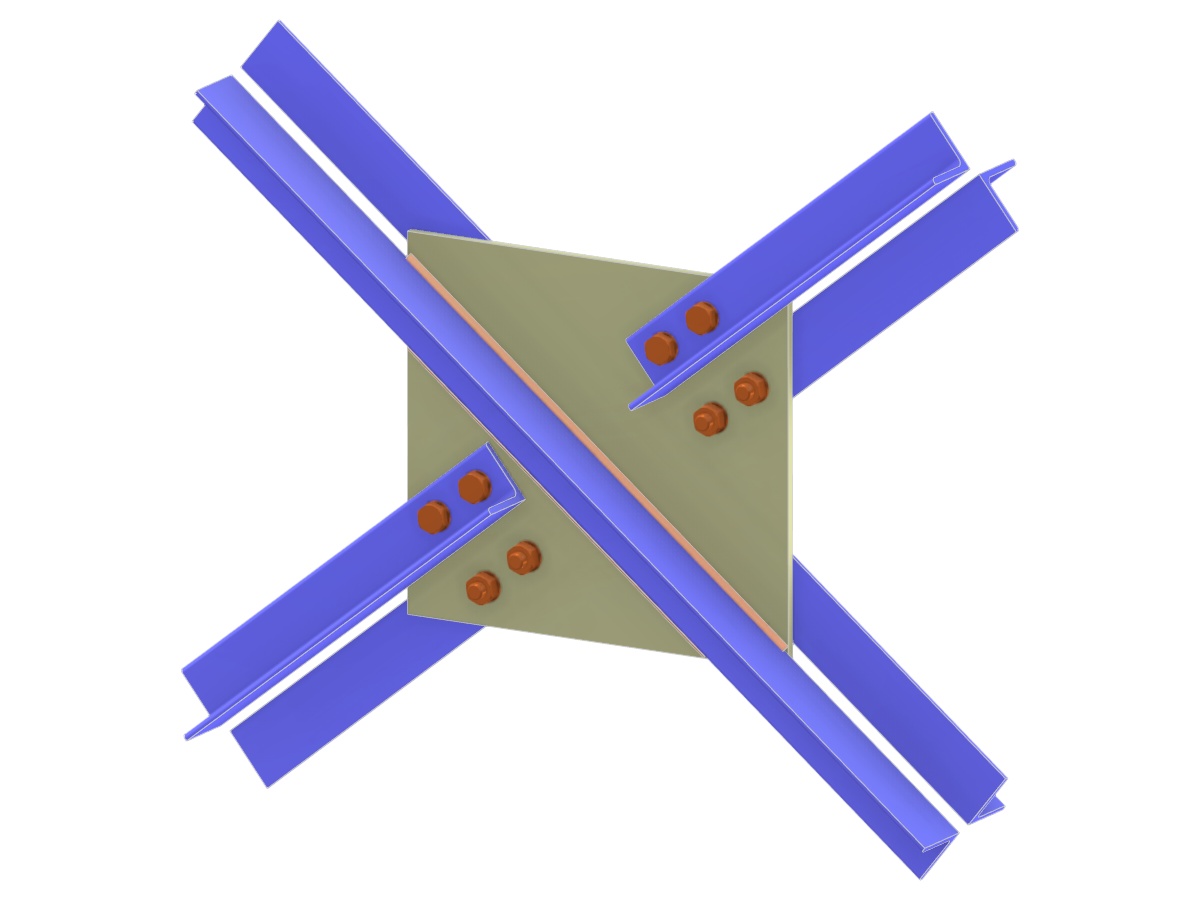

Model 006224 | Bracing X-Joint | Diagonal to Diagonal Connection via Gusset Plate
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 0.123 tons |
| Dimensions (Metric) | 2,500 x 2,000 x 0,000 m |
| Dimensions (Imperial) | 8.2 x 6.56 x 0 feet |
