Circular Tapered Footing Foundation

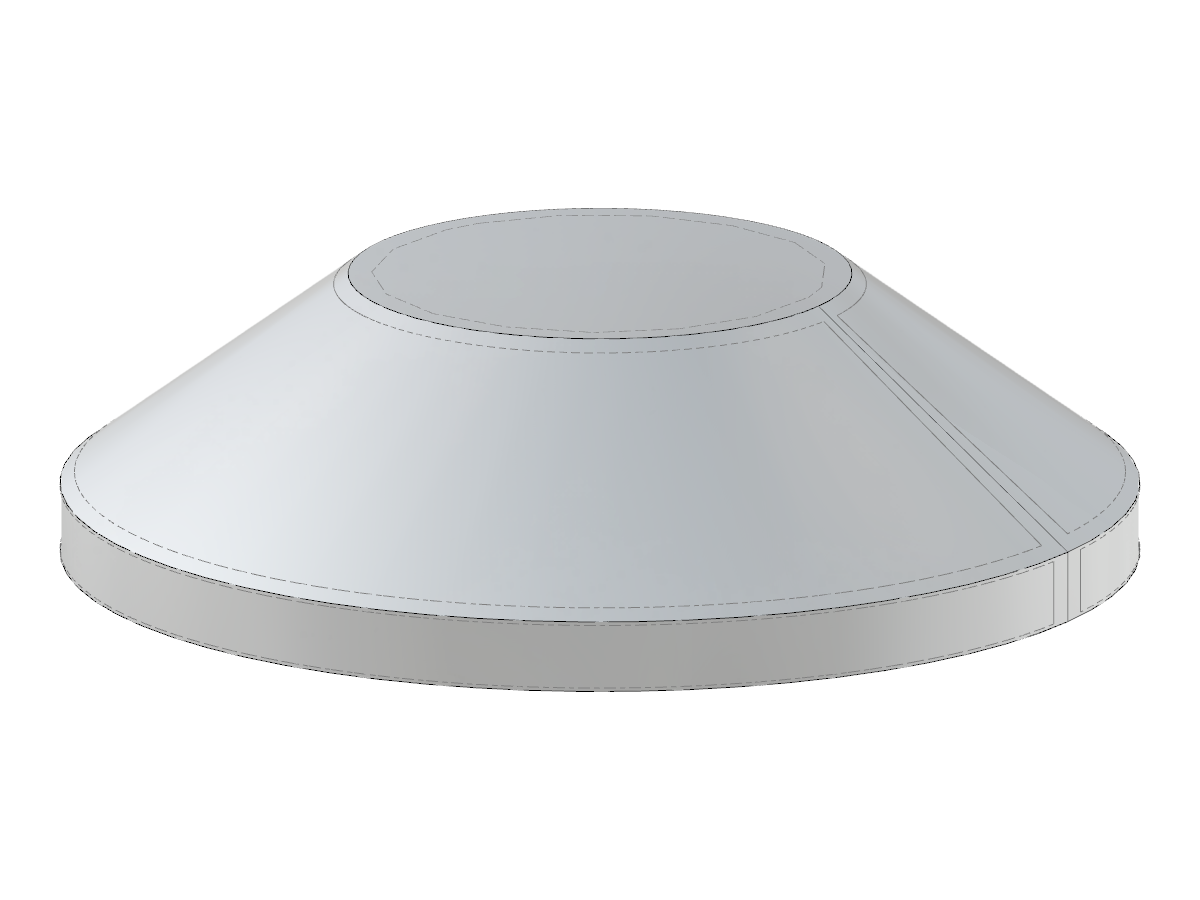

Tapered circular footing foundation providing stable support for structures.
The image shows a tapered circular footing foundation. The foundation is designed to evenly distribute loads from structures above. Its circular shape aids in effective stress distribution and stability. Tapered design elements enhance the overall structural integrity. The foundation is suitable for various engineering applications.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.186 tons |
| Dimensions (Metric) | 1.500 x 0.400 x 1.500 m |
| Dimensions (Imperial) | 4.92 x 1.31 x 4.92 feet |
