Rectangular Foundation with Eccentricity

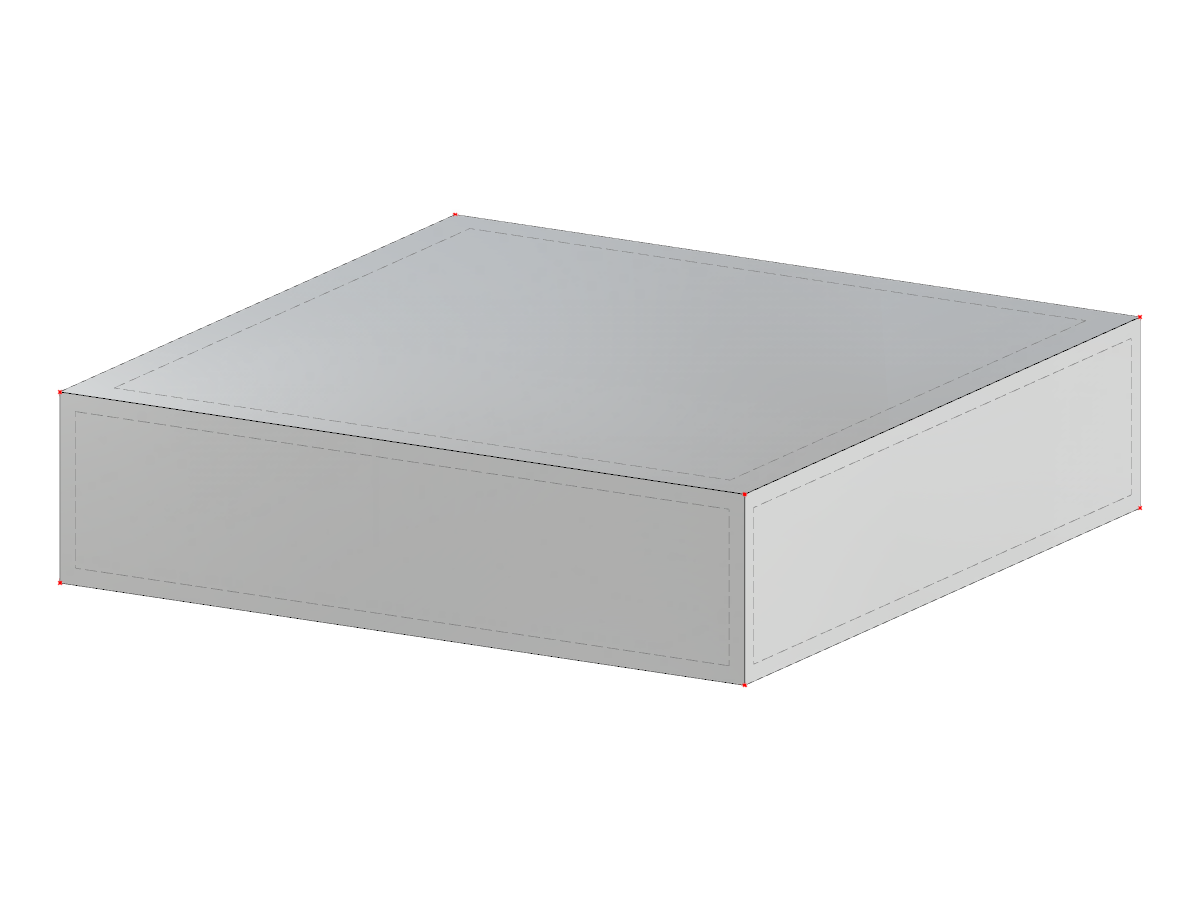

Rectangular foundation displaying an eccentric deviation from the center point.
The image illustrates a rectangular foundation characterized by an eccentricity from its central axis. This design consideration impacts the load distribution and stability, reflecting an advanced understanding of foundational behavior and structural analysis. The eccentric placement likely addresses specific alignment requirements or site conditions.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.000 tons |
| Dimensions (Metric) | 2.000 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 1.64 x 6.56 feet |
