Container Modeled by Orthotropic Surface with Openings

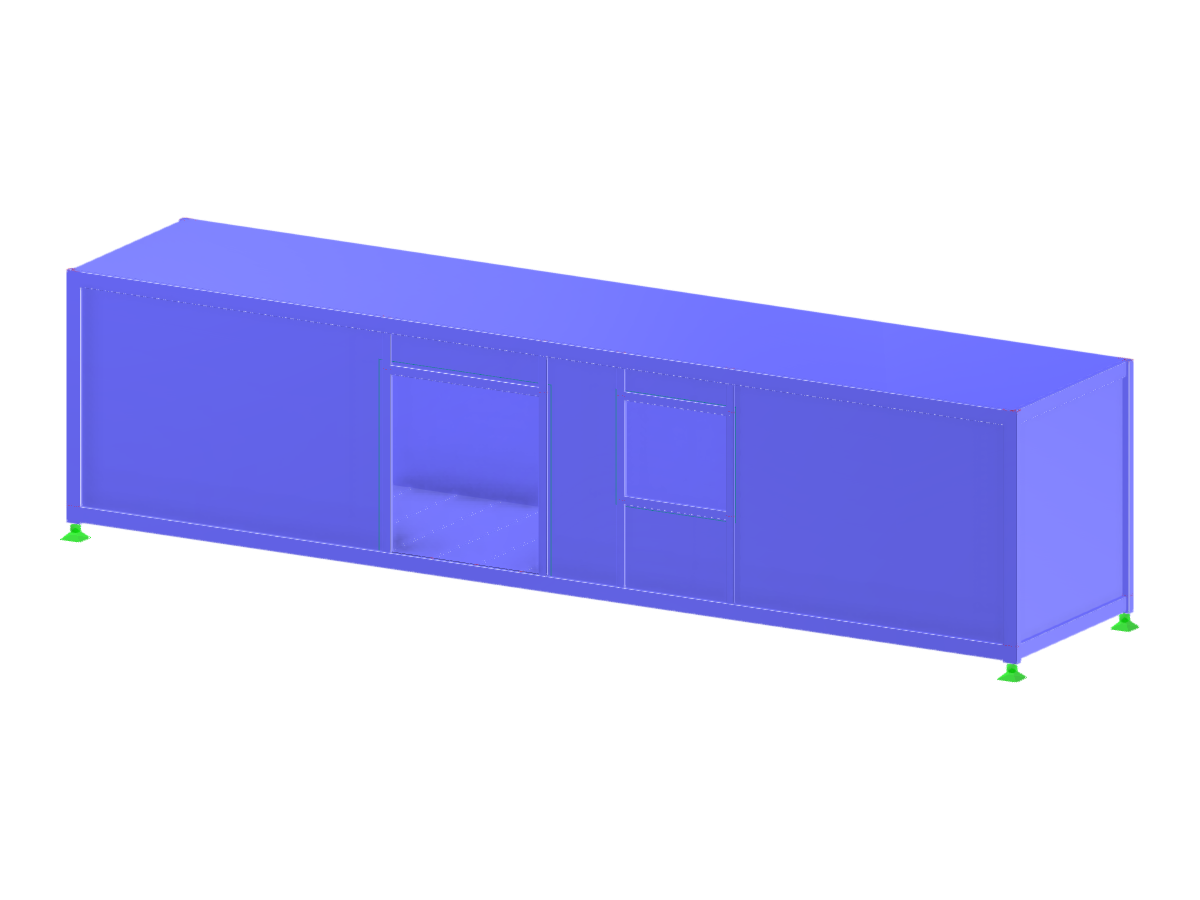

Container model with door and window openings demonstrating orthotropic surface properties.
The image depicts a digital model of a container featuring door and window openings. The model is designed using orthotropic surface properties, which are important for accurately simulating specific structural behaviors. The application of thickness shape orthotropy allows for detailed analysis in scenarios where the material properties differ in various directions.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2172 |
| Number of Lines | 50 |
| Number of Members | 49 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.473 tons |
| Dimensions (Metric) | 12.072 x 2.930 x 2.572 m |
| Dimensions (Imperial) | 39.61 x 9.61 x 8.44 feet |
