Multiple Story Wall Structure with Variable Cells

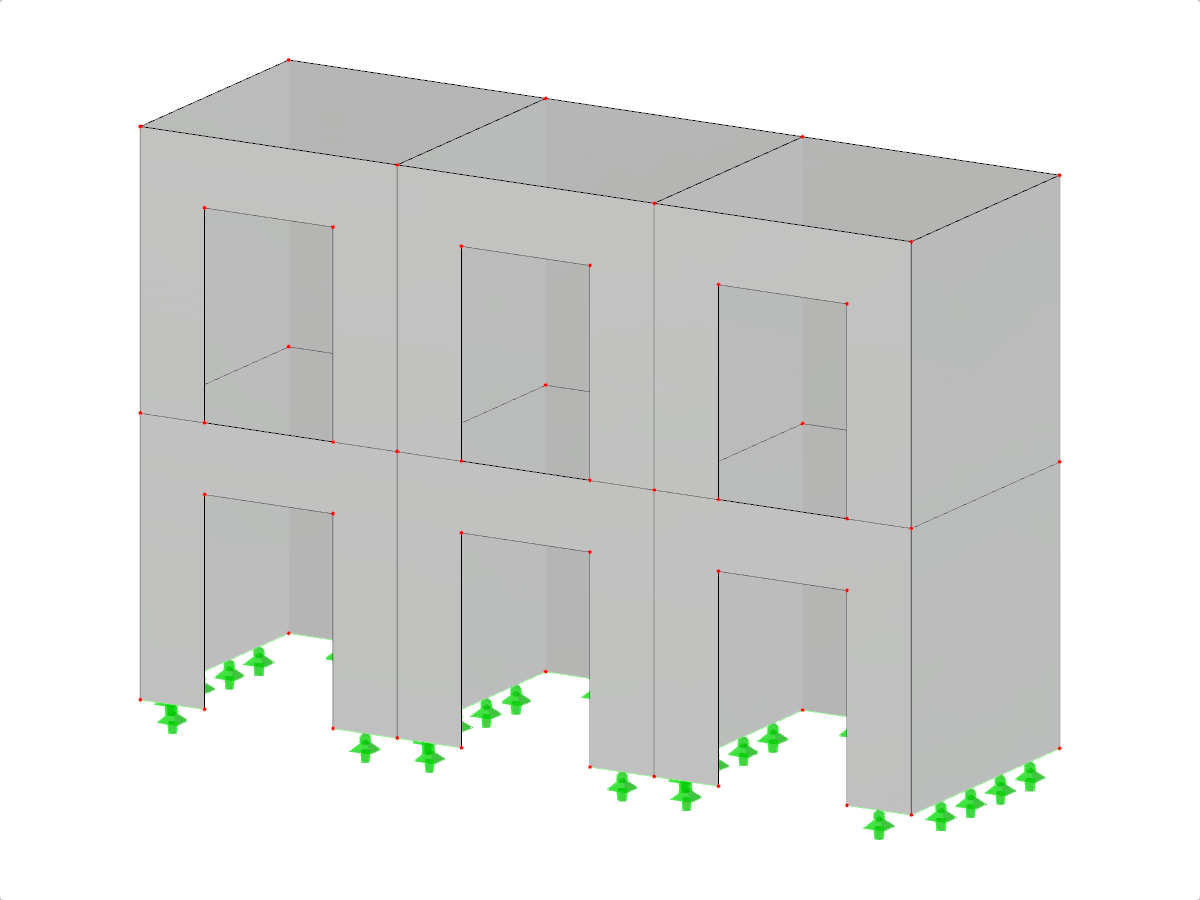

The image depicts a multi-cell wall structure with varying numbers of stories and cells, showcasing different configurations of vertical and horizontal segments.
The image features a structural model of a multiple cell wall stack with various numbers of stories and cells. Each segment of the model is arranged in different configurations to illustrate complex structural design elements. This setup can be used in engineering to analyze the load distribution across a building's structure. The display emphasizes intricate connections between vertical and horizontal building elements.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 48 |
| Number of Lines | 73 |
| Number of Members | 0 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 142.000 tons |
| Dimensions (Metric) | 12.000 x 8.000 x 4.000 m |
| Dimensions (Imperial) | 39.37 x 26.25 x 13.12 feet |
