Straight Wall with Variable End Zones and Story Count

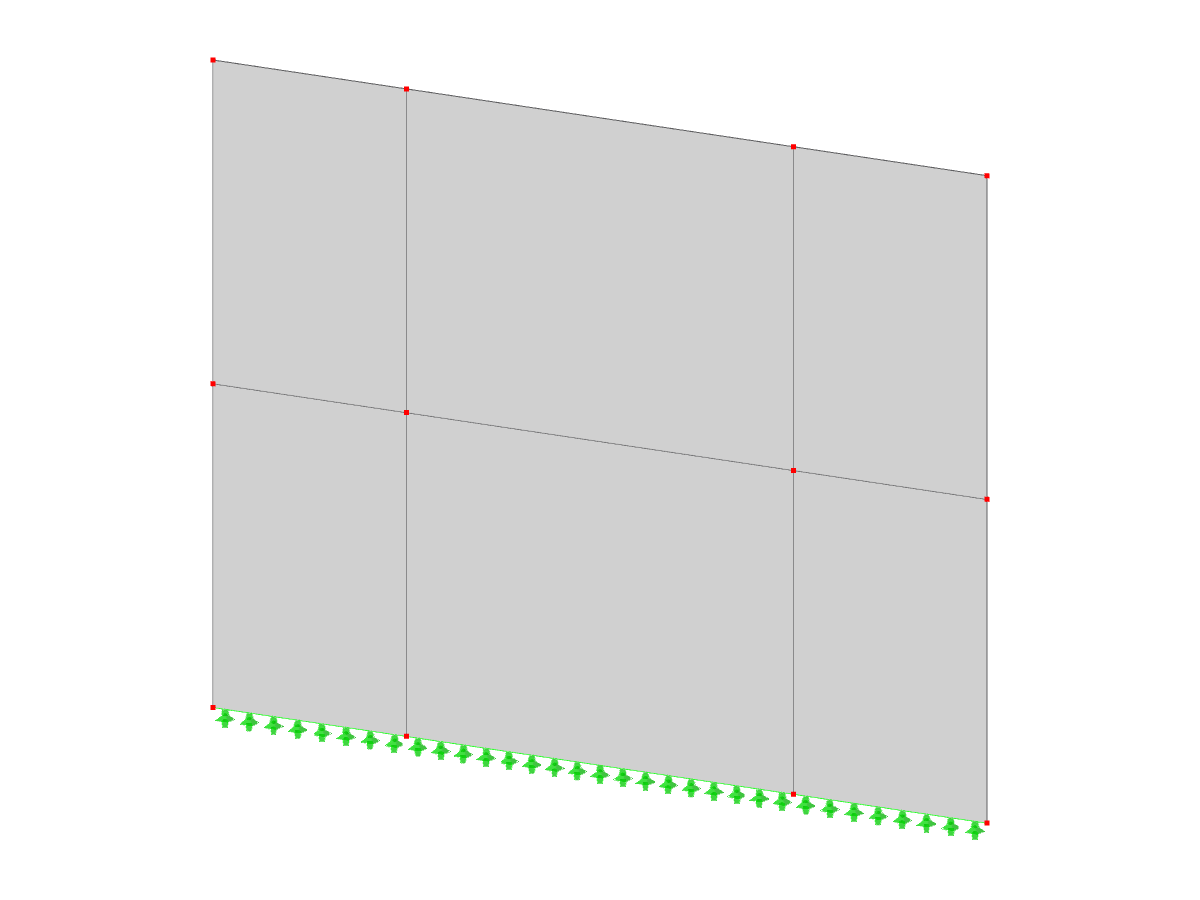

Building wall stack with straight wall design, variable story count, and distinct end zones configuration.
The image presents a structural design of a straight building wall stack with variable numbers of stories. It features end zones that differ in design, indicating variation in structural load or design requirement across different wall sections. This setup may relate to considerations for wind load, building height adjustments, or aesthetic design intents.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 39.000 tons |
| Dimensions (Metric) | 8.000 x 6.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 19.69 x 0 feet |
