3D Grid for Elliptical Structure with Adjustable Features
3D grid model showcasing an elliptical structure with variable side numbers and floor levels.

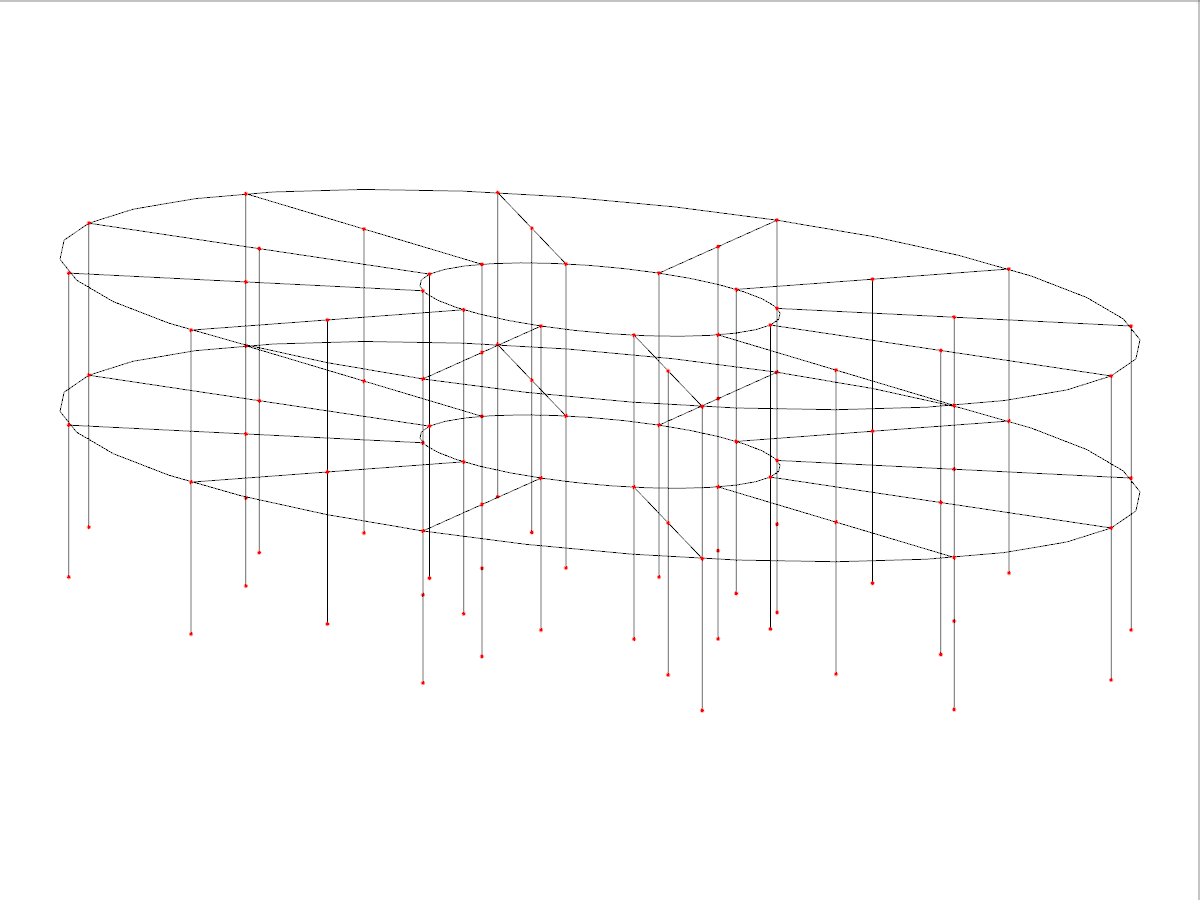

The image displays a 3D grid model of an elliptical structure. The model features a flexible design allowing for variable numbers of sides and floors. This reflects the adaptability and precision required in modern structural engineering.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 108 |
| Number of Lines | 124 |
| Number of Members | 0 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 30.000 x 8.000 x 18.000 m |
| Dimensions (Imperial) | 98.43 x 26.25 x 59.06 feet |
