3D Rectangular Grid with Variable Bays and Floors

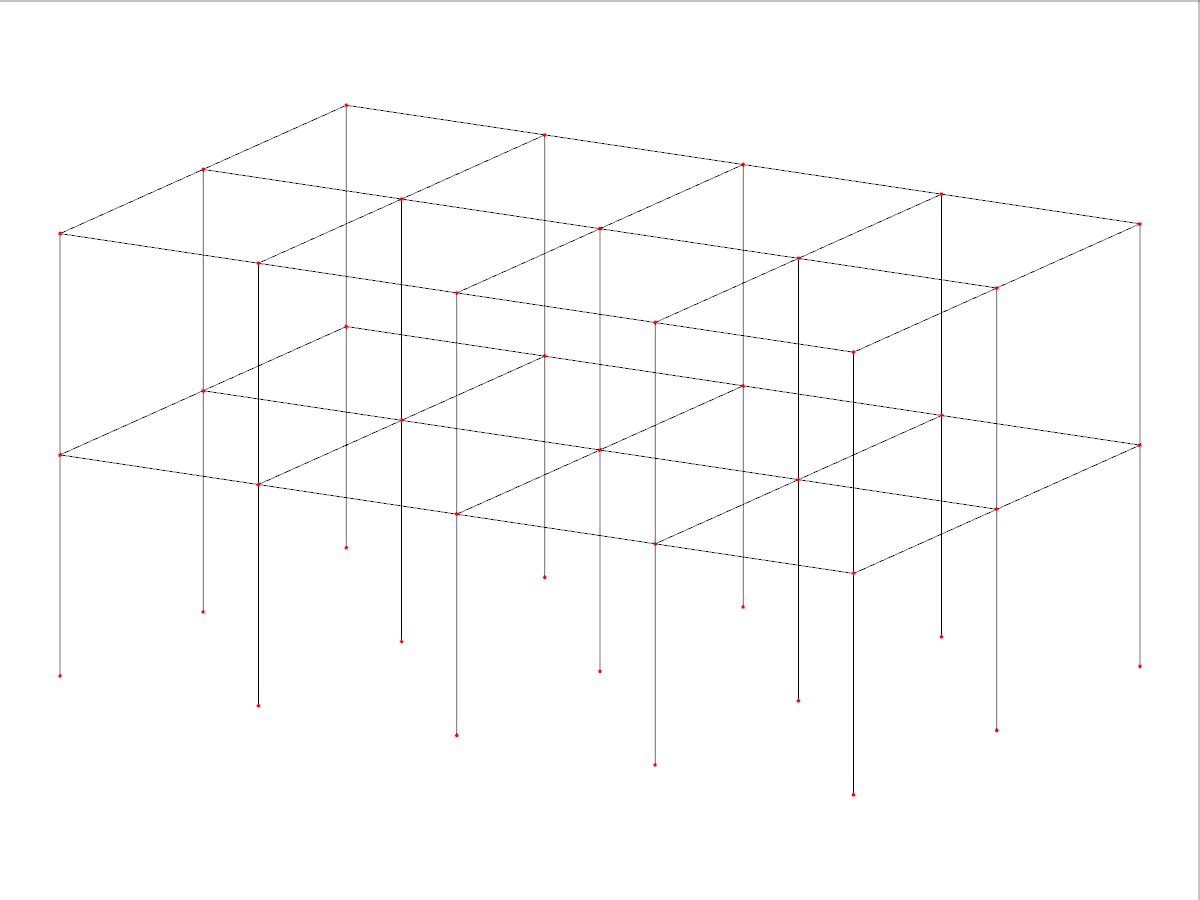

A detailed 3D grid representing a multi-level rectangular structure with variable bays and floors.
The image showcases a complex 3D grid model of a rectangular structure with distinct variation in bays and floors. It highlights the architectural design flexibility and structural details required for such constructions. The grid demonstrates the adaptability of the model to varying engineering requirements. This model can be associated with analyses involving load-bearing capacity and structural integrity.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 45 |
| Number of Lines | 74 |
| Number of Members | 0 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 16.000 x 8.000 x 10.000 m |
| Dimensions (Imperial) | 52.49 x 26.25 x 32.81 feet |
