Through-Tied Arch Bridge with Twin Braces
A through-tied arch bridge featuring braced twin arches for enhanced stability and structural integrity.

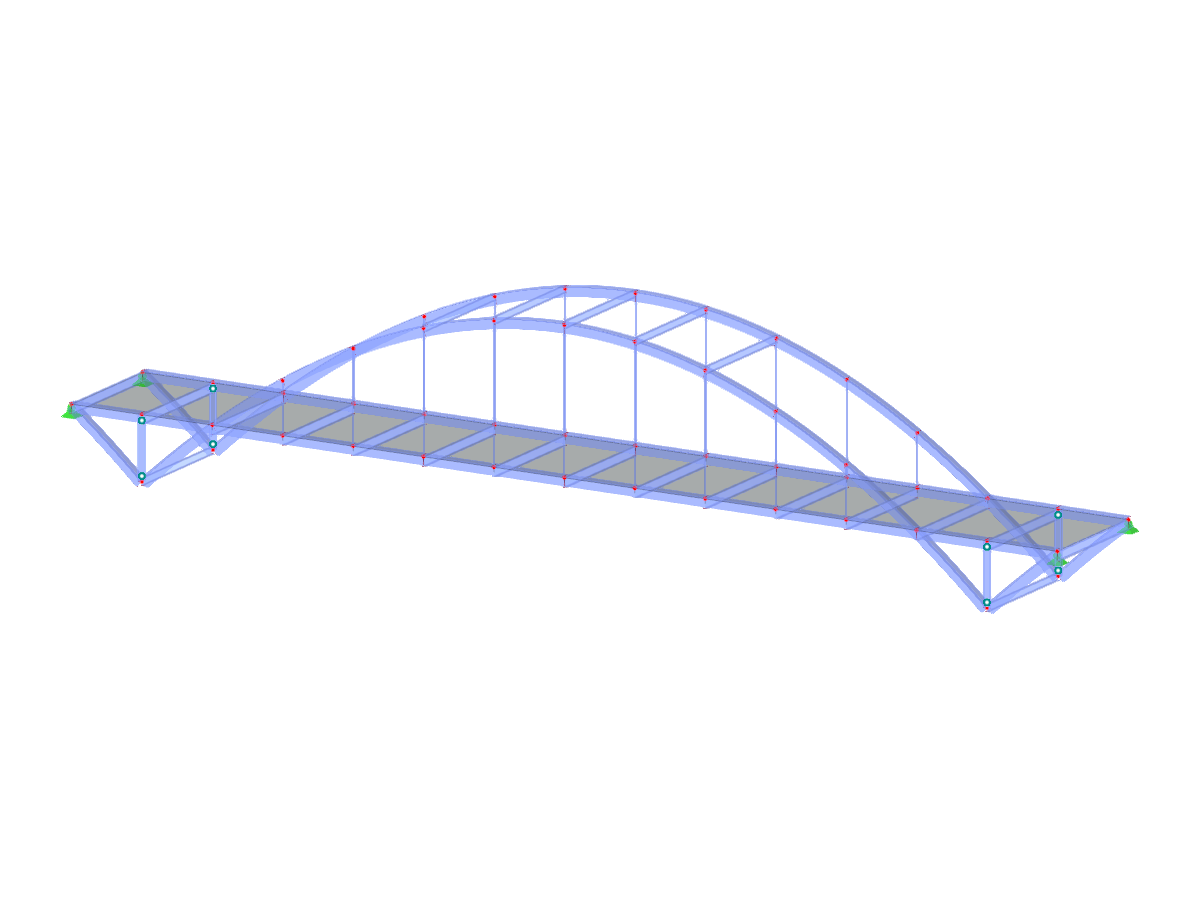

The image showcases a through-tied arch bridge characterized by its braced twin arches. This type of construction is known for combining aesthetic appeal with functional strength. The bracing of the arches enhances stability and load distribution, allowing for efficient use of materials. Ideal for spanning large distances, it showcases engineering innovation in bridge design.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 52 |
| Number of Lines | 102 |
| Number of Members | 100 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 22.993 tons |
| Dimensions (Metric) | 20.000 x 4.000 x 2.500 m |
| Dimensions (Imperial) | 65.62 x 13.12 x 8.2 feet |
