Non-Symmetric Bracing System for Variable Floors and Heights

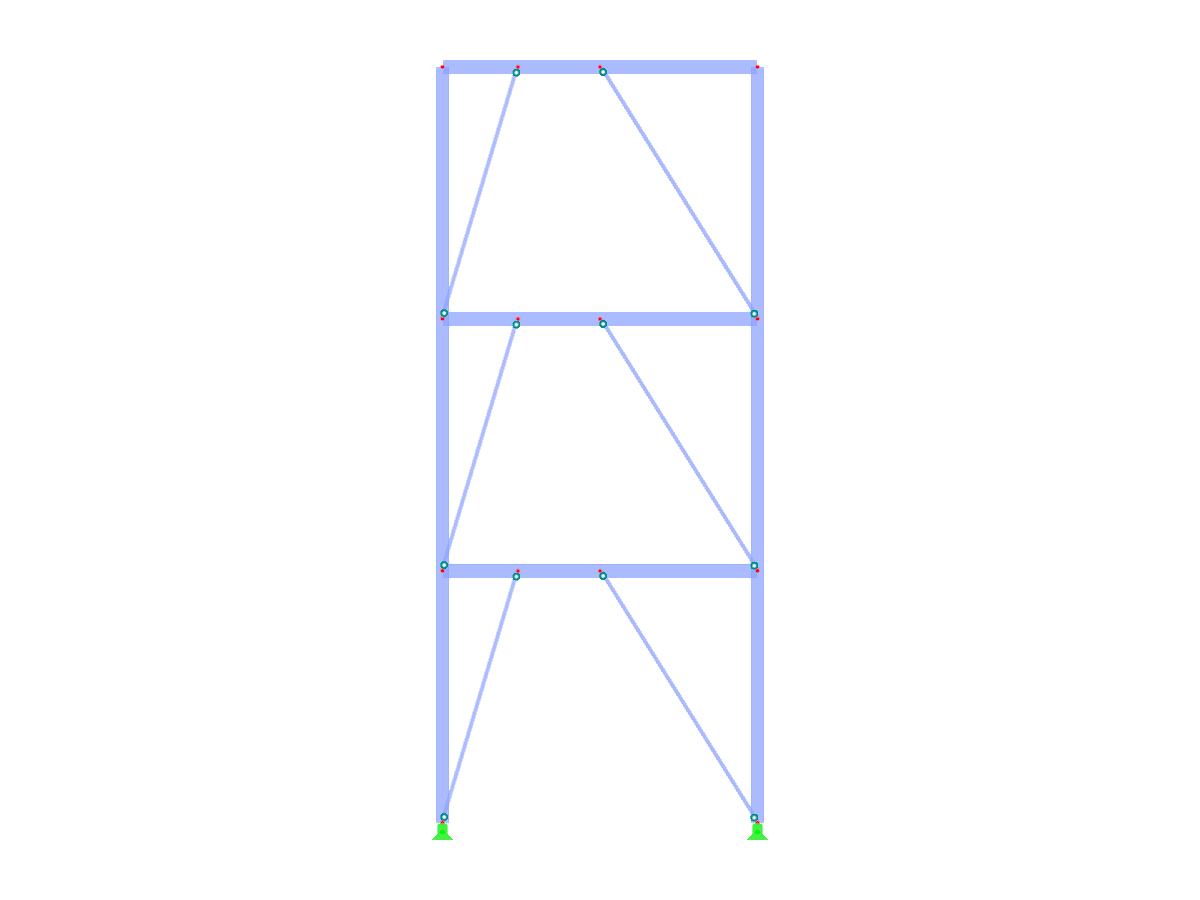

Non-symmetric bracing system for steel structures with varying floors and heights, illustrating structural design variations.
The visualization showcases a non-symmetric bracing system designed for steel structures with variable numbers of floors and considerable height variations. The illustration emphasizes the adaptability of this system in accommodating different architectural requirements, which may include irregular floor layouts or height disparities amongst floors. This image highlights the structural specifics without referencing specific software or methods.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 14 |
| Number of Lines | 21 |
| Number of Members | 21 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.096 tons |
| Dimensions (Metric) | 5.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 39.37 x 0 feet |
