V-Bracing Design in Steel Structures

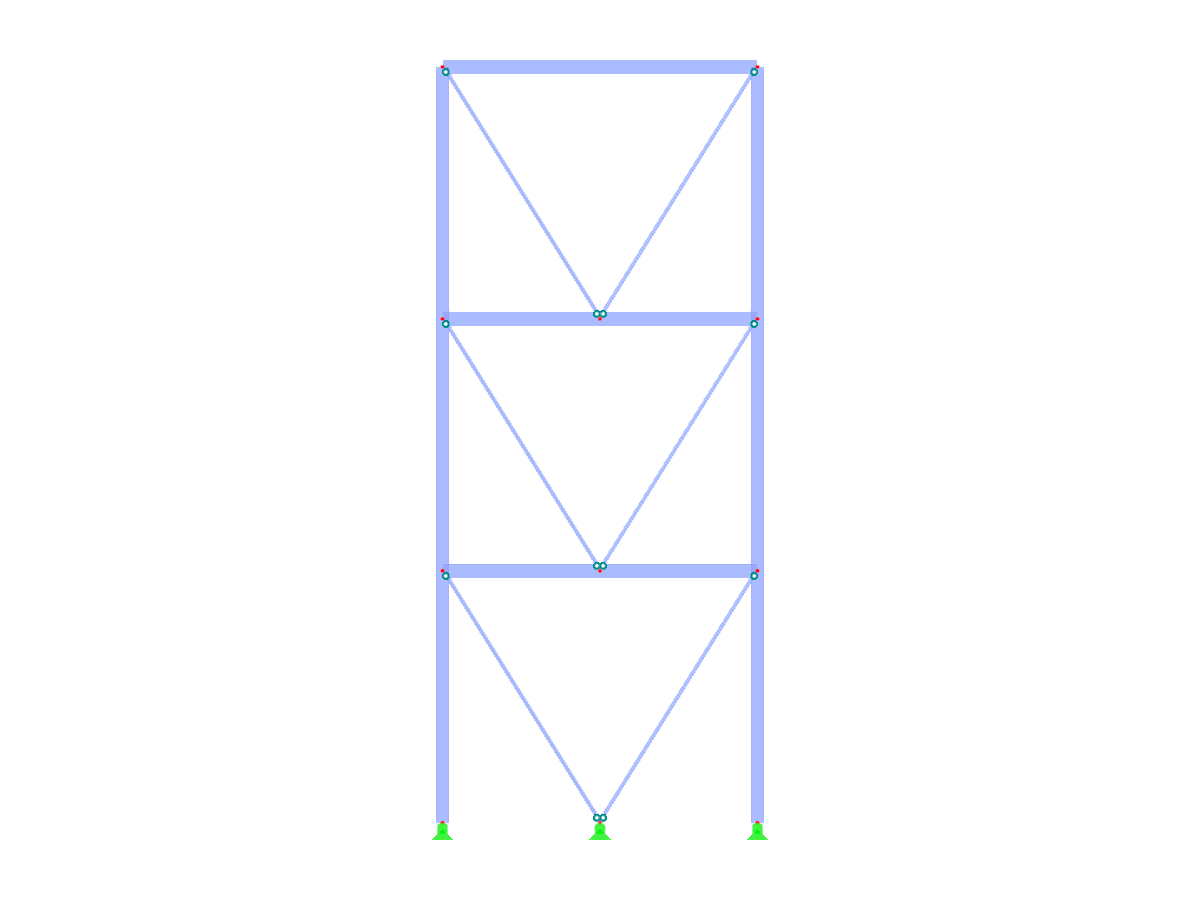

Steel structure featuring a V-bracing system for enhanced stability and load distribution.
The image displays a steel structure utilizing a V-bracing system, also known as chevron bracing. This bracing configuration is typically used to enhance the structural stability and efficiently distribute loads throughout the framework. The configuration improves the performance of steel structures under various loads. The image captures a detailed view of the bracing arrangement.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.100 tons |
| Dimensions (Metric) | 5.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 39.37 x 0 feet |
