Inclined Gerber Beam with Hinges
Inclined continuous Gerber beam featuring odd bays with inserted hinges in structural engineering.

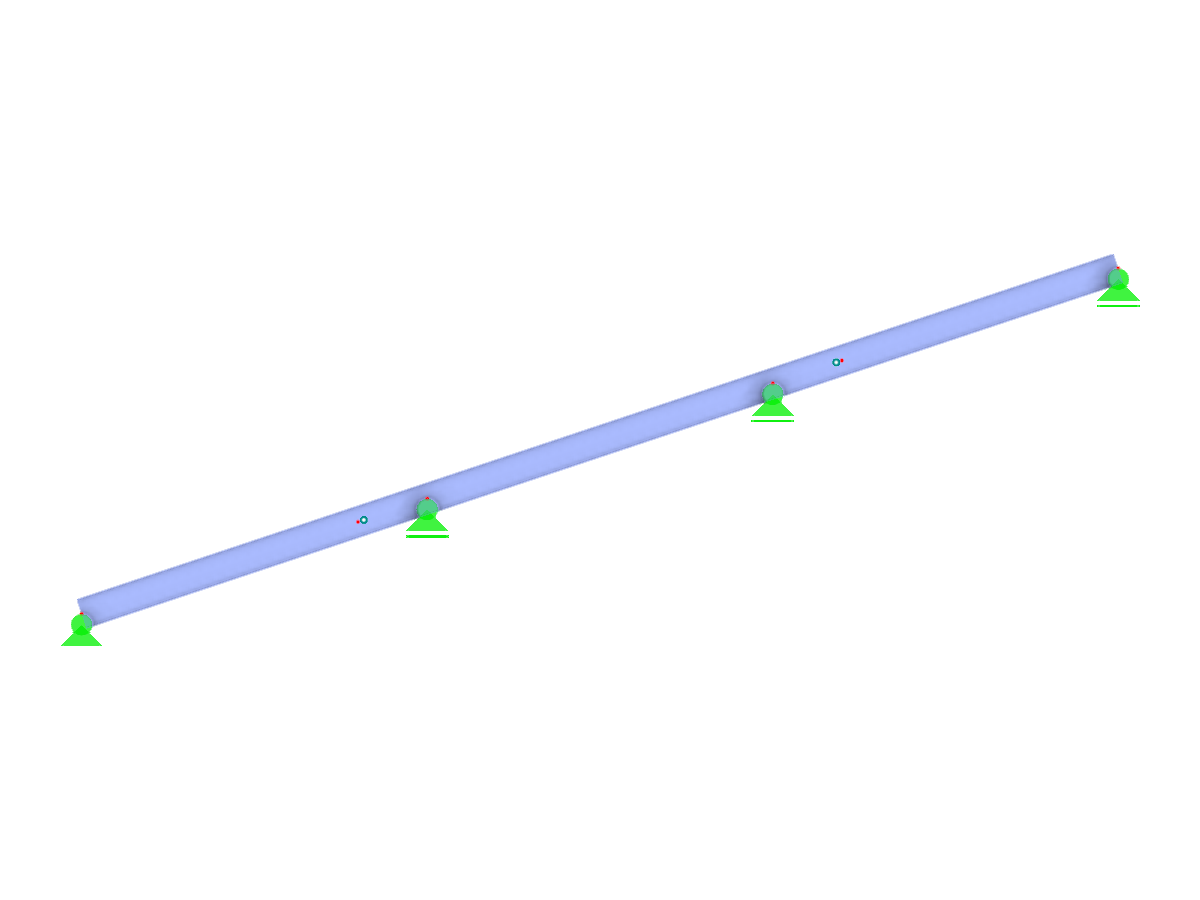

The image depicts an inclined continuous beam, commonly known as a Gerber beam, featuring odd bays with strategically placed hinges. These hinges allow for moment release at specific locations, facilitating structural flexibility and reducing moments in the beam. This design is often employed in bridge construction and other long-span structures to optimize material use and enhance structural efficiency.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.119 tons |
| Dimensions (Metric) | 6.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 6.56 x 0 feet |
