Layout of Continuous Beam with Hinges

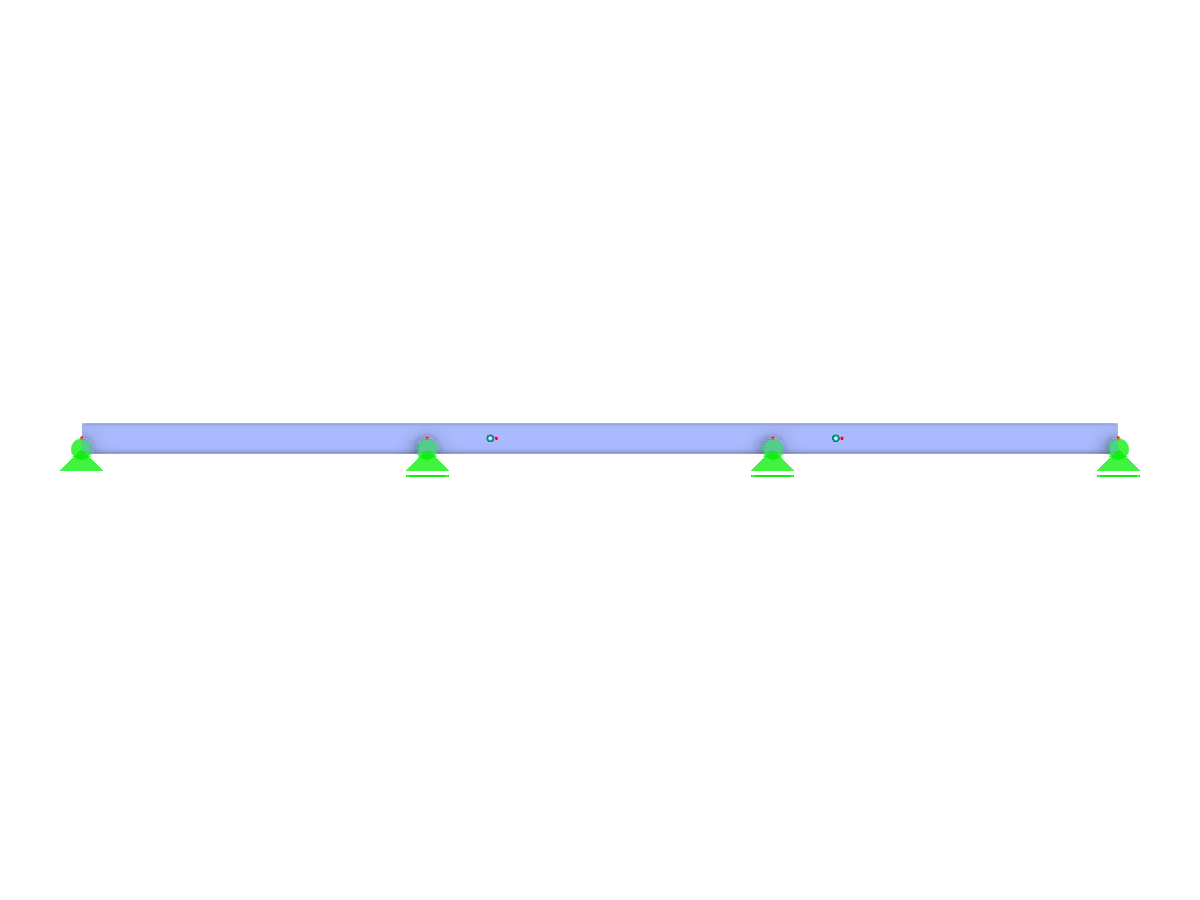

Continuous beam featuring one bay without a hinge and subsequent bays with inserted hinges, resembling a Gerber beam structure.
The image illustrates a continuous beam structure, characterized by the presence of hinges. The first bay of the beam lacks a hinge, while the remaining bays include a hinge each. This configuration is designed as a Gerber beam, allowing for controlled moment distribution and structural flexibility.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.113 tons |
| Dimensions (Metric) | 6.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
