Analysis of Continuous Gerber Beam with Hinges

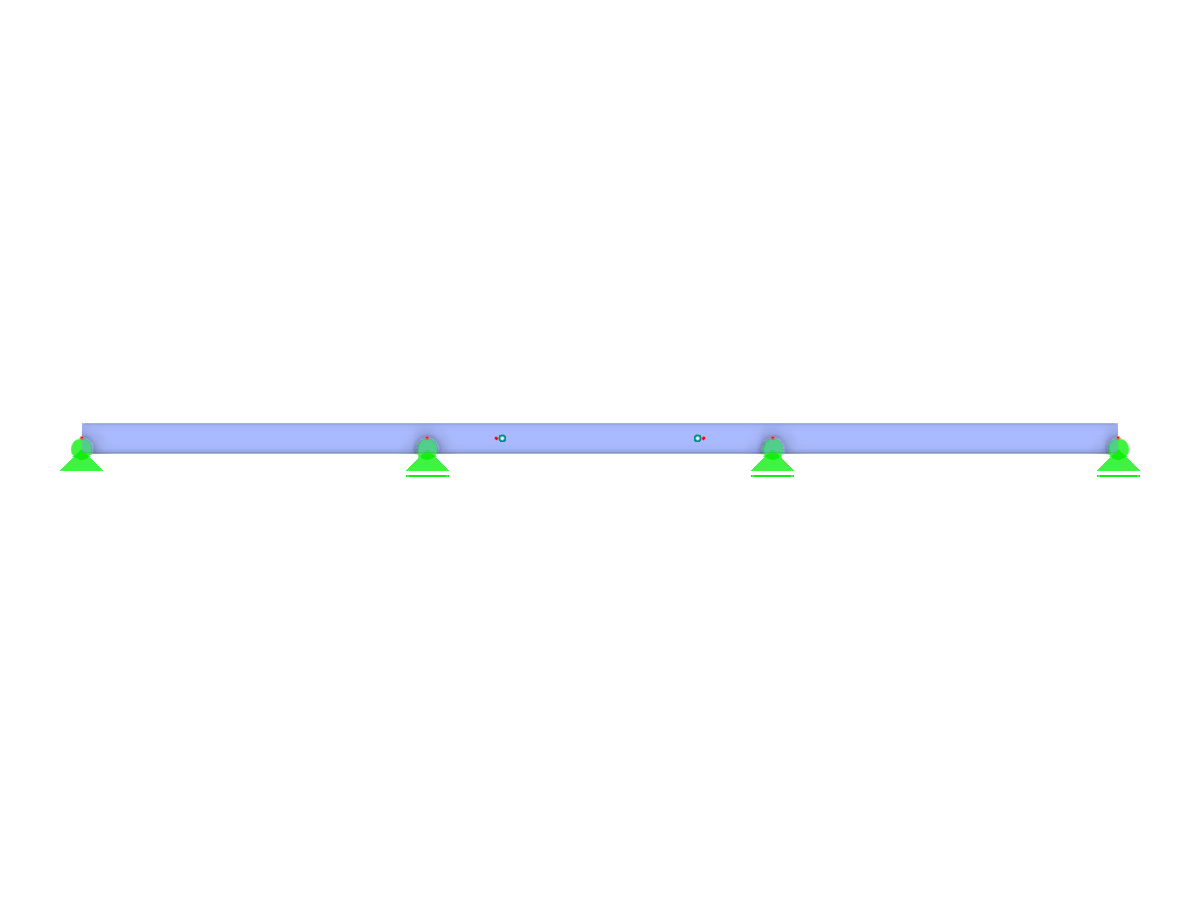

Continuous beam with evenly spaced inserted hinges, also known as a Gerber beam, showing structural analysis details.
The image depicts a continuous beam design featuring evenly spaced inserted hinges, commonly referred to as a Gerber beam. This design allows the beam to have rotational freedom at hinge points, optimizing load distribution and structural efficiency. The beam consists of even spans with strategically placed hinges to facilitate improved structural performance.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.113 tons |
| Dimensions (Metric) | 6,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
