Parametric Double-Sided Billboard Structure Simulation
Simulation model of a two-sided billboard structure with adjustable inter-panel angle showcasing parametric design capabilities.

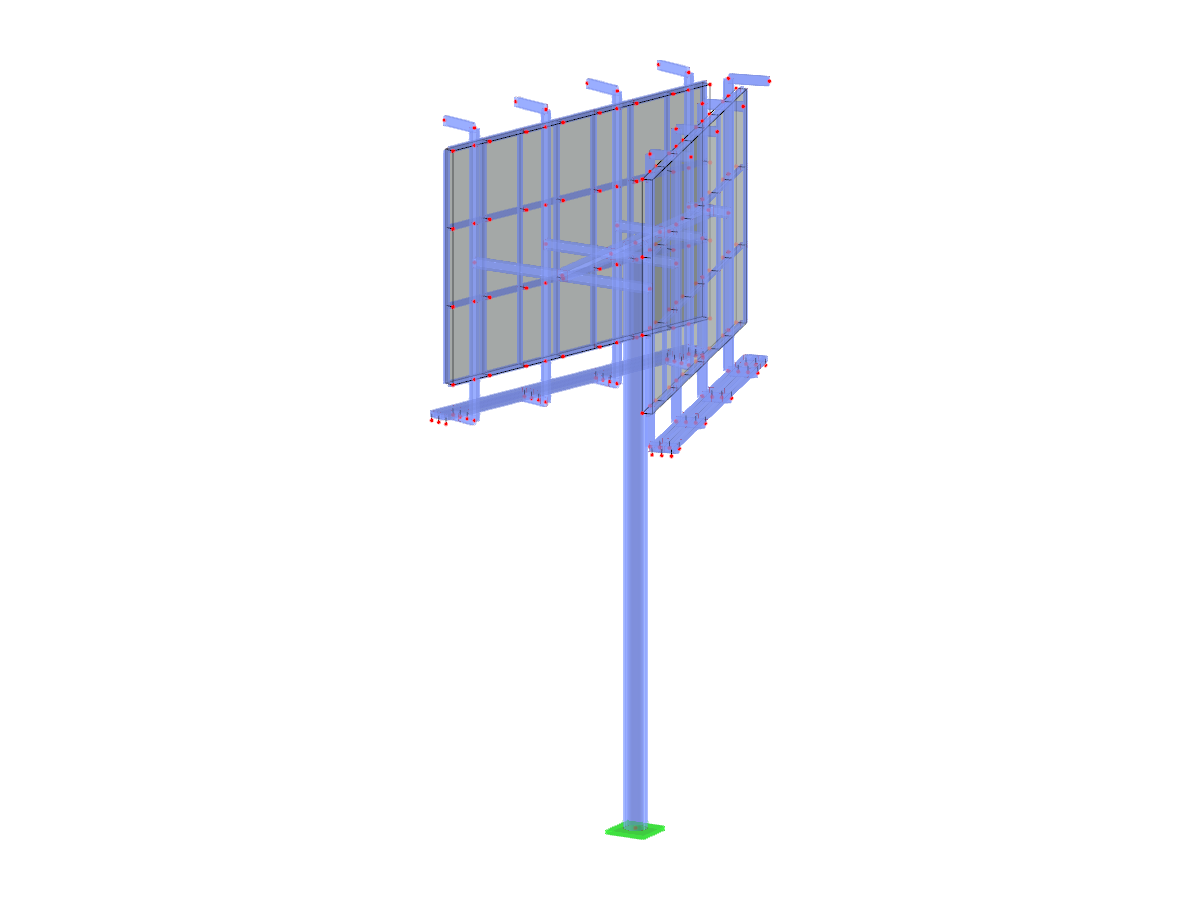

The image showcases a simulation of a two-sided billboard structure. The structure is designed with a parametric angle between the two panels, allowing flexibility and adjustments. This demonstrates the application of parametric design in structural engineering. The model illustrates how angles can be modified for optimal performance.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 170 |
| Number of Lines | 230 |
| Number of Members | 222 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.563 tons |
| Dimensions (Metric) | 4.699 x 12.300 x 5.925 m |
| Dimensions (Imperial) | 15.42 x 40.35 x 19.44 feet |
