Comparison of Loads and Axial Force Display in RFEM 6

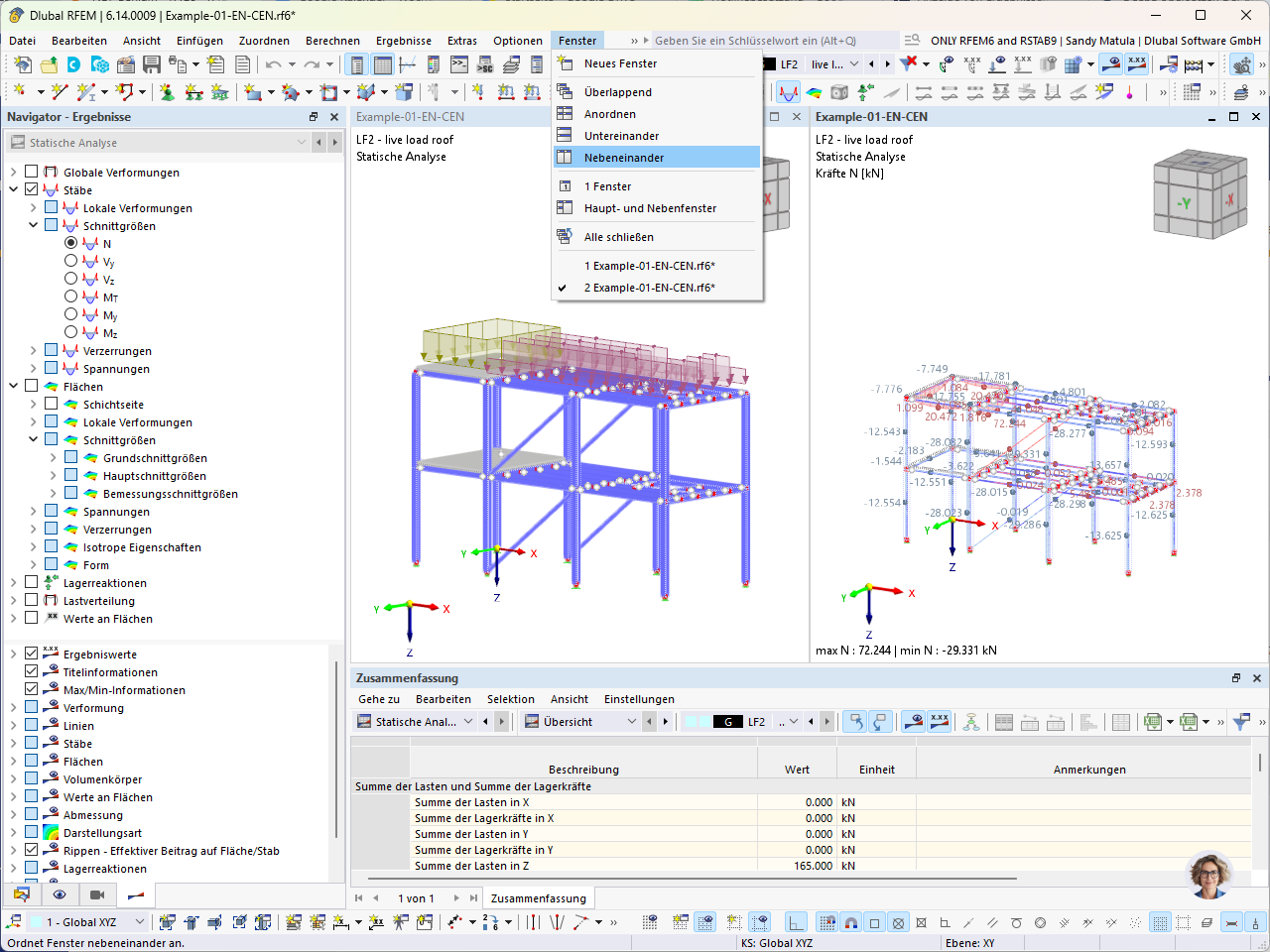

Display of two windows in RFEM 6 showing load case loading and axial forces side by side.

The image shows two windows in the RFEM 6 software. The left window shows the loads in Load Case 2. The right window displays the results for the axial forces in the same load case. This side-by-side display allows for a direct comparison of the two states. The clear visual separation facilitates the analysis of loads and their effects on the structure.
