Equivalent Stresses of Bus Station in RFEM

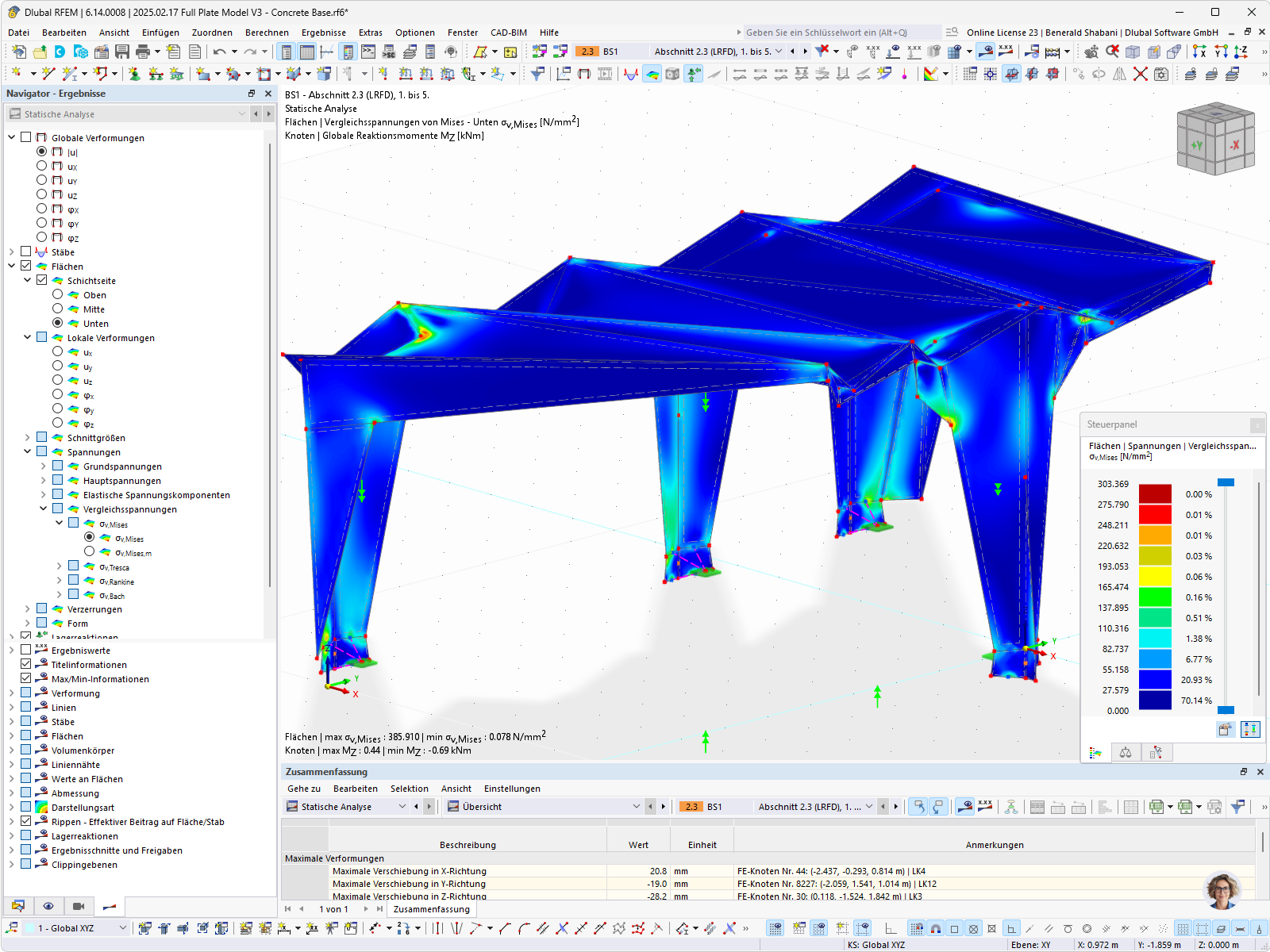

Display of equivalent stresses at a bus stop using RFEM with a detailed stress distribution.
The image shows an analysis of the equivalent stresses at a bus stop. The visualization was created using the structural analysis program RFEM, which highlights subtle differences in the stress distribution. Different colors show stress peaks and troughs in the model. The display makes it easier to understand local stresses and potential weak points in the structure.
© RBHU
3D Model
Specifications
| Number of Nodes | 113 |
| Number of Lines | 166 |
| Number of Members | 16 |
| Number of Surfaces | 57 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 4 |
| Total Weight | 0.562 t |
| Dimensions (Metric) | 3.004 x 2.000 x 4.833 m |
| Dimensions (Imperial) | 9.86 x 6.56 x 15.86 feet |
