Model 006103 | Timber Shear Wall with Openings | 2024 NDS and 2021 SDPWS

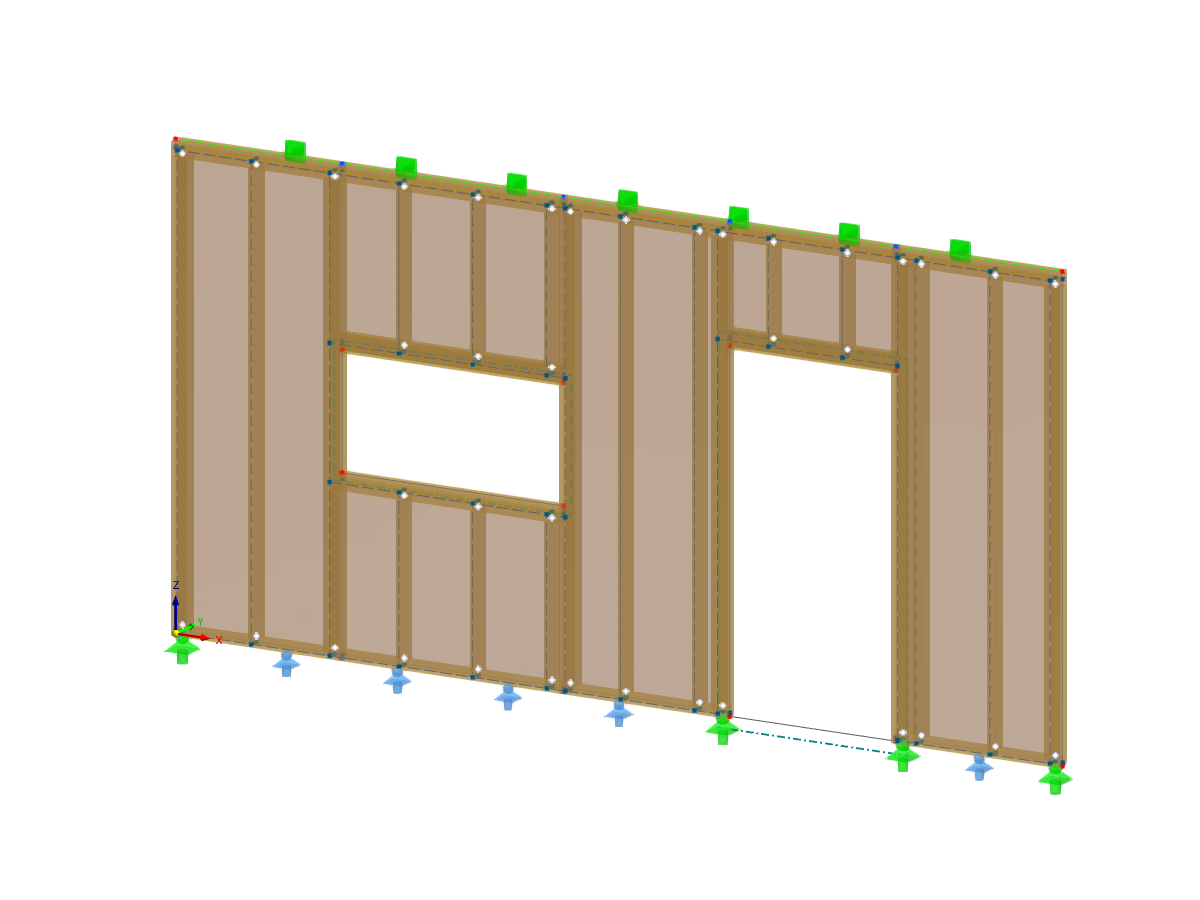

The image illustrates a timber shear wall model that includes openings, designed according to the 2024 NDS and 2021 SDPWS standards. The design process ensures that the structural integrity maintains compliance with current building codes.
3D Model
Specifications
| Number of Nodes | 132 |
| Number of Lines | 93 |
| Number of Members | 31 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 0.297 tons |
| Dimensions (Metric) | 4.877 x 2.438 x 0.050 m |
| Dimensions (Imperial) | 16 x 8 x 0.16 feet |
