Beam with Supports and Loadings in Structural Analysis

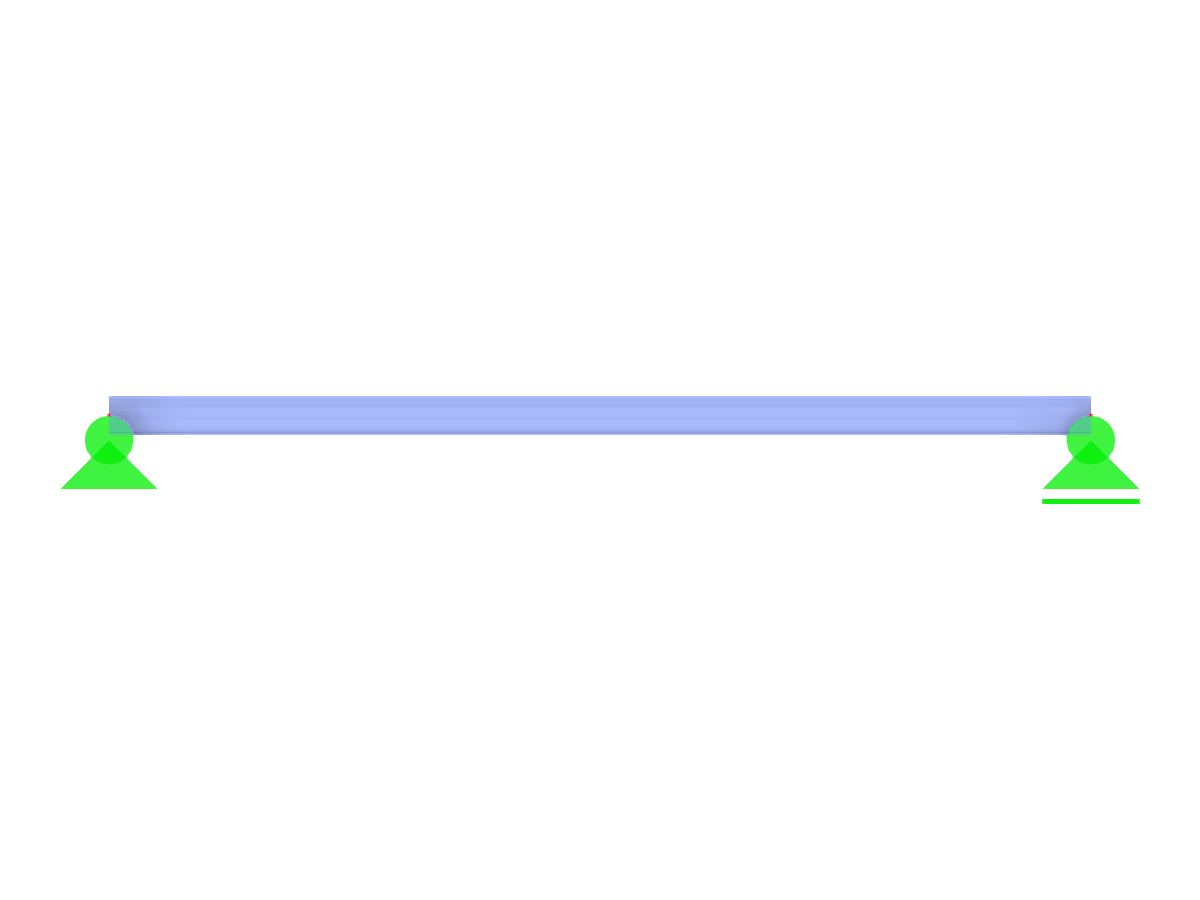

A single beam is shown with supports and applied loading used in structural analysis for evaluating forces and moments.
The image displays a single beam subjected to forces, equipped with supports at certain points. The setup is typical for analyzing stress distribution and deflection.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.012 tons |
| Dimensions (Metric) | 2.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 0 x 0 feet |
