Parametric Single-Cell Box Girder Cross-Section

Parametric single-cell box girder section defined in RSECTION, showing a hollow structural shape with tapered webs and chamfered corners for bridge design.

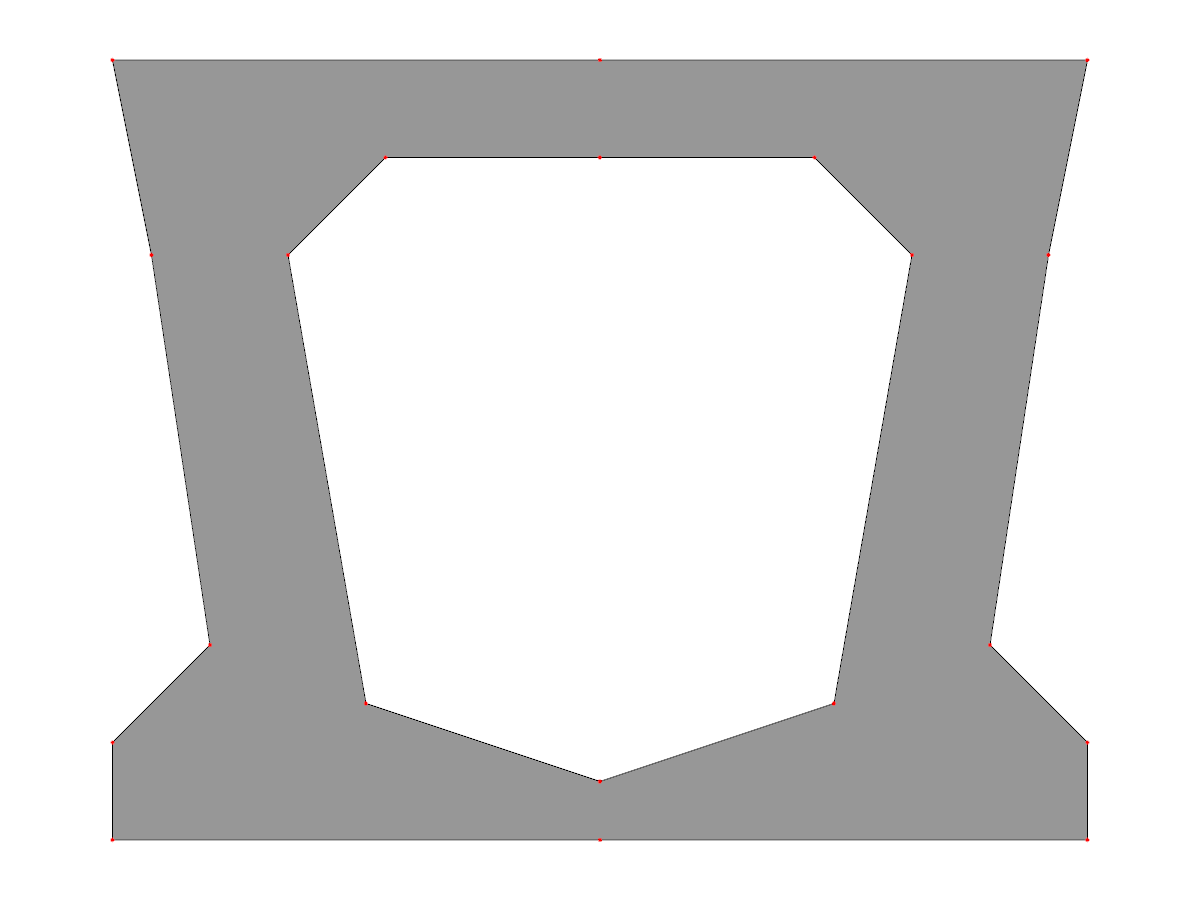

The image displays a parametric single-cell box girder cross-section created as a parametric block in RSECTION. This thin-walled profile features a rectangular outer contour with a central polygonal void and tapered side walls. RSECTION enables the definition and analysis of arbitrary cross-sections by calculating geometric properties such as area, moments of inertia, and section moduli. The software supports the modeling of complex shapes using parametric input, which facilitates the efficient design of bridge girders and other hollow structural elements.
