Model 005422 | Column Base

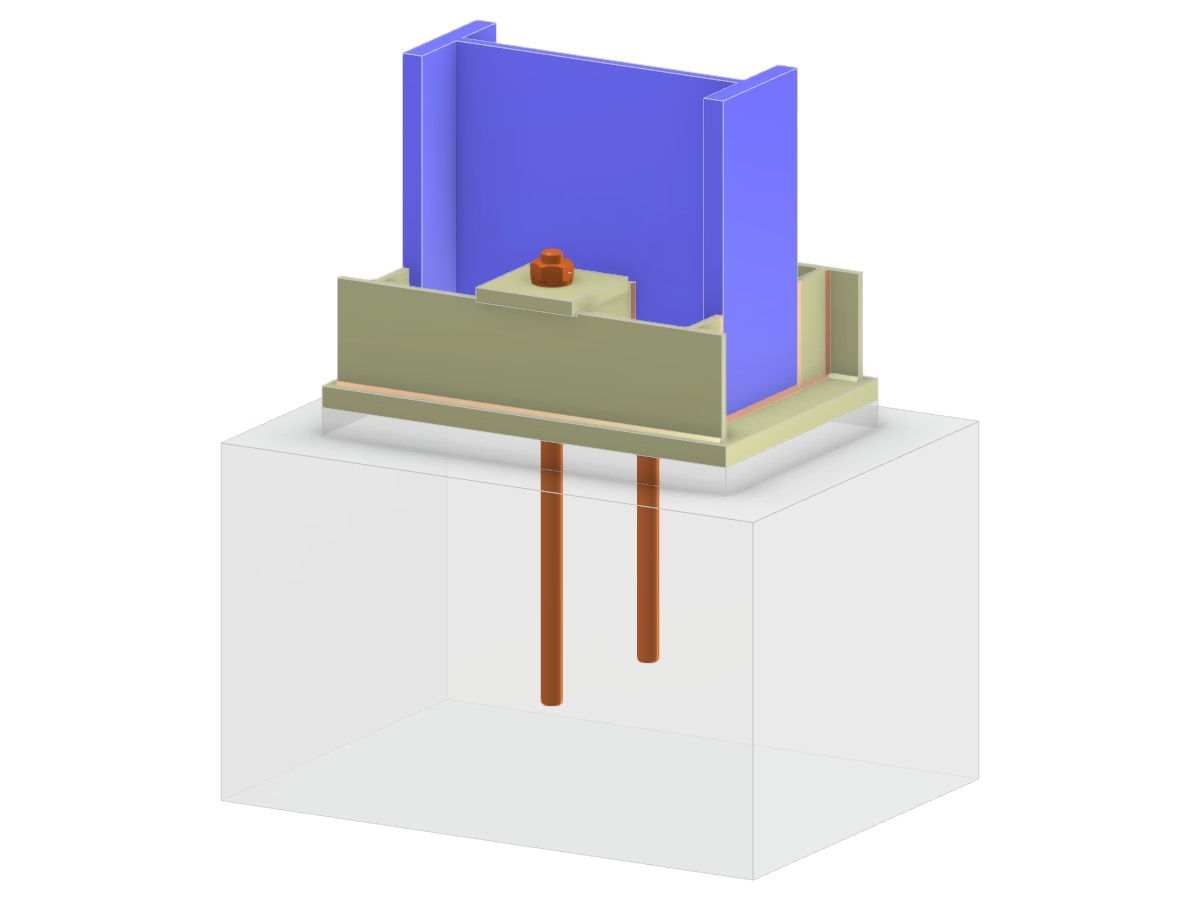

This image illustrates a structural model focused on column base details. It highlights the components such as the base plate, stiffeners or ribs, and an I-section with anchoring elements. These components are essential for distributing loads effectively and ensuring stability. The model is designed to offer insight into the connectivity and structural performance at the base level.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.149 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
