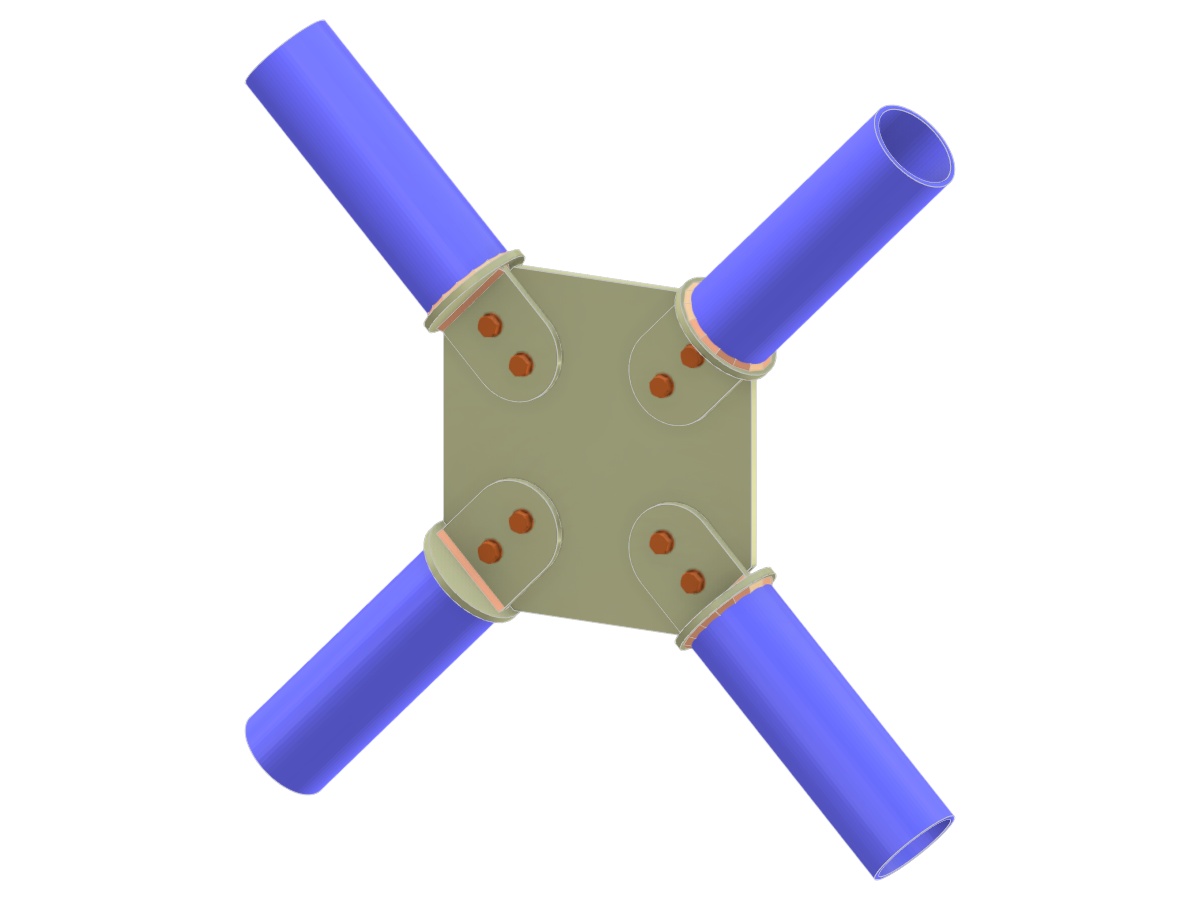

Model 005336 | Bracing X-Joint | Diagonal to Diagonal Connection via Gusset Plate and Tongue Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.025 tons |
| Dimensions (Metric) | 0.740 x 0.740 x 0.000 m |
| Dimensions (Imperial) | 2.43 x 2.43 x 0 feet |
